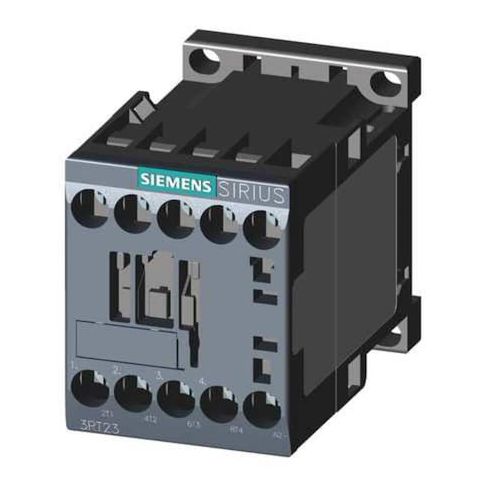

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT23171BB40

• The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This model is a four-pole (4P) unit with a 24 V DC coil, non-reversing action, and four normally open auxiliary contacts. It uses screw terminals and is part of the SIRIUS 3RT23 family (frame size S00) with no enclosure.

  Key features:

  • - Coil Voltage: 24 V DC
  • - Action: Non-Reversing
  • - Poles: 4
  • Main Contacts: 4 NO
  • - Auxiliary Contacts: 4 NO
  • - Terminals: Screws
  • - Mounting Style: DIN Rail, Surface
  • Mounting Position: Vertical
  • - Enclosure: No Enclosure
  • IP Rating: IP20
  • - Frame/Series: S00
  • Series: SIRIUS 3RT23
  • - Phase: 3
  • - Reversing: No
  • - Overall dimensions: 2.8 in W x 1.95 in H x 3 in D
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
