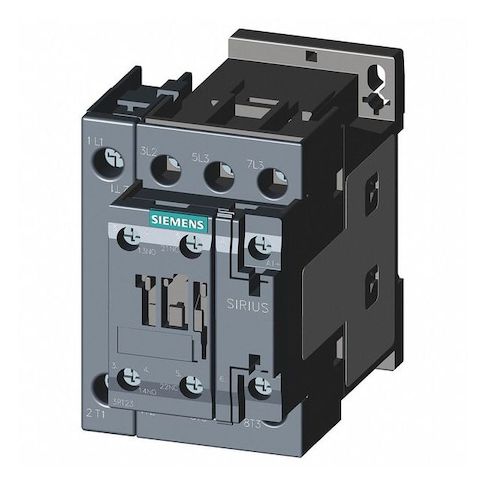

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT23261BB40
Out Of Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device ideal for various industrial applications. With a 24V DC coil and 4-pole non-reversing action, it provides precise control over electrical circuits. Its screw terminal connections and DIN Rail or surface mounting options make it easy to integrate into existing systems. The contactor is suitable for use in industrial automation, control panels, and motor control applications, offering reliable operation and long lifespan. Its compact design and robust construction ensure seamless performance in a wide range of environments, from -13°F to 140°F.
Top product features:
- The Siemens IEC Magnetic Contactor is electrically operated and rated for operation within specified electrical parameters.
- It includes auxiliary contacts with 1 normally open (NO) and 1 normally closed (NC) contact.
- It features screw terminal connections for easy and secure wiring.
Top product applications:
- Industrial Automation Systems
- Industrial Control Panels
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within specified electrical parameters. It is a 4-pole, non-reversing contactor with a 24 V DC coil, part of the SIRIUS 3RT23 family (frame S0). It includes auxiliary contacts (1NO/1NC) and main contacts as specified
- features screw terminal connections. It supports DIN Rail or surface mounting as specified, and is available without an enclosure
- IP20 rating indicates the level of protection against solid objects.
Key features
- - Coil Voltage: 24 V DC
- - Action: Non-reversing action as specified
- - Poles: 4
- - Main Contacts: 4 normally open
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Reversing Capability: does not support reversing functionality
- - Frame/Series: SIRIUS 3RT23, Frame Size S0
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection: Screws
- - Enclosure / IP Rating: No Enclosure
- IP20
- - Dimensions (HxWxD): 5.12 in x 3.04 in x 3.67 in
- - Operating Range: rated for operation within temperature range of -13°F to 140°F
- - Mechanical Durability: tested for mechanical durability up to 10 million cycles under standard conditions
- - Max Operating Watts: 8 kW at 400 V (AC-3/AC-4)
- - Full Load Amps: Inductive 15.5 A, Resistive 35 A
- - Phase: 3
- - Includes Auxiliary Contacts: Yes
- - Standards: REACH Art 33, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.60
- Package Height: 3.00
- Package Weight: 1.45
