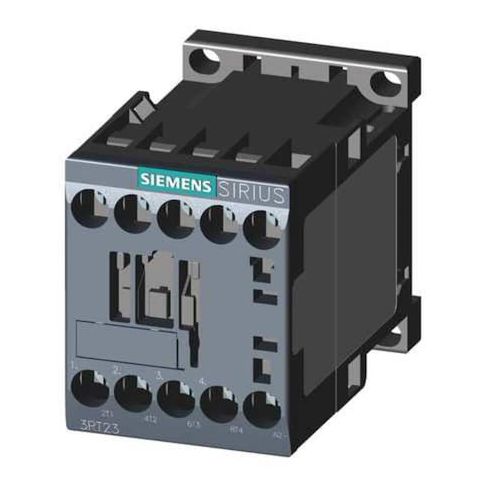

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT23161BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, machinery, and equipment. Its four-pole, non-reversing design ensures consistent and safe operation, while its 24V DC coil voltage and 4 kW power rating make it suitable for use in 3-phase systems. The contactor's compact design and DIN Rail/Surface mounting capabilities make it easy to integrate into existing systems. With its IP20 rating and screw termination, this contactor provides a high level of protection and flexibility, making it an ideal choice for applications where reliability and efficiency are paramount.
Top product features:
- The Siemens IEC Magnetic Contactor is non-reversing, meaning it will only operate in one direction and prevent accidental reversing of the motor.
- It includes four normally open auxiliary contacts that can be used to control other devices or monitor the contactor's status.
- The device is rated for 3-phase operation and has a power rating of 4 kW at 400 V, making it suitable for controlling high-power motors.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a four-pole, 24 V DC coil device rated for use in applications compliant with IEC standards. It is non-reversing and uses screws for electrical connections. The unit includes four normally open auxiliary contacts and is part of the SIRIUS 3RT23 series (frame S00), rated for 3-phase operation within specified parameters
- compatible with DIN Rail and surface mounting as per installation guidelines. It does not include an enclosure
- IP20 rating indicates the level of protection against solid objects larger than 12.5 mm.
Key features
- - Action: Non-Reversing
- - Auxiliary contacts: 4NO
- - Coil voltage: 24 V DC
- - Contactor style: IEC
- - Frame/Series: S00 / SIRIUS 3RT23
- - Poles: 4
- - Phase: 3
- - Termination: screws
- - Enclosure: Does not include an enclosure
- IP20
- - Mounting style: DIN Rail, Surface
- Mounting position: Vertical
- - Power rating: 4 kW at 400 V (AC-3/AC-4)
- - Dimensions (overall): Height 3.08 in
- Width 1.97 in
- Depth 2.45 in
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.65
