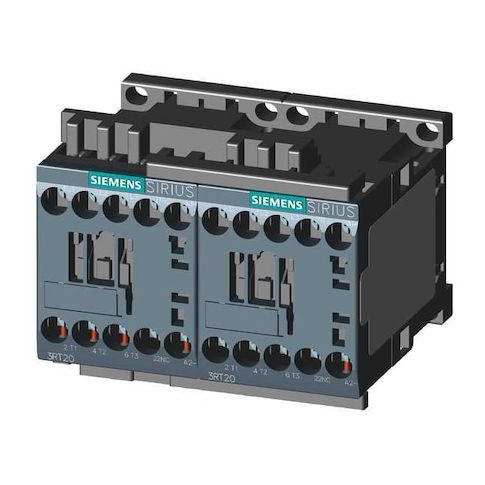

IEC Magnetic Contactor, 2NC, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23158XB301AP6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of industrial applications. With its 3-pole, reversing configuration and 220-240 V AC coil rating, it's perfect for controlling motors, pumps, and other equipment in 3-phase systems. The device features 2 NC auxiliary contacts and a mechanical interlock, providing enhanced safety and control. Its compact design and screw terminal connections make it easy to integrate into existing systems. Suitable for use in various industries, including manufacturing, oil and gas, and water treatment, this contactor ensures smooth and reliable operation.
Top product features:
- Reversing action allows for bidirectional control of the load
- Three-phase operation supports efficient power distribution
- Screw terminals provide secure and easy connection for wiring
Top product applications:
- Motor Control Applications
- This IEC Magnetic Contactor is suitable for use in motor control applications where a reliable and efficient switching device is required.
- Power Distribution Systems
The SIEMENS IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a 3-pole, reversing model with a coil rated 220–240 V AC, part of the SIRIUS 3RA23 series (frame size S00). It has a maximum rated voltage of 690 V AC, operates at 50/60 Hz, and uses screw terminals. The unit supports vertical mounting with DIN Rail or surface mounting and is specified as having no enclosure with an IP20 rating. It includes a mechanical interlock and auxiliary contacts, consisting of 2 NC auxiliary contacts, while the main contacts are 3 normally open and 0 normally closed.
- Action: Reversing
- - Coil Voltage: 220–240 V AC
- - Phase/Poles: Three-phase, 3 poles
- - Main Contacts: 3 normally open, 0 normally closed
- - Auxiliary Contacts: 2 NC
- - Includes: Mechanical Interlock
- - Frame Size / Series: S00, SIRIUS 3RA23
- - Maximum Rated Voltage: 690 V AC
- - Frequency: 50/60 Hz
- - Enclosure / IP: No Enclosure, IP20
- - Terminal Connection: Screw
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.90
- Package Height: 2.90
- Package Weight: 1.05
