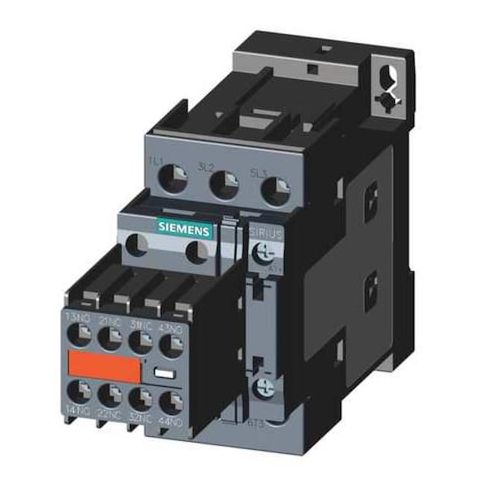

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20251BB443MA0

• Key features

• - Action: Non-Reversing
• - Poles: 3
• - Coil voltage: 24 V DC
• - Auxiliary contacts: 4 total (2NO/2NC)
• - Main contacts: 3 normally open
• - Frame: Frame B
• Frame Size: S0
• - Electrical connection: Screws
• - Embedded surge suppressor: No
• - Enclosure: No
• - IP rating: IP20
• - Maximum voltage rating: 690 V AC
• - Max operating watts: 8 kW (400 V AC-3)
• 23 kW (400 V AC-1)
• - Maximum operating temperature: 140 °F
• - Minimum operating temperature: -13 °F
• - Mechanical durability: 10,000,000 cycles
• - Overall dimensions: Width 2.4 in
• Height 6.25 in
• Depth 5.2 in
• - Mounting: Vertical
• DIN Rail or Surface
• mounting hole diameter 0.19 in
• hole distances 2.36 in (height) and 1.38 in (width)
• - Phase: Three
• - Includes: Permanent Mounted Aux Contact
• - Reversing: No
• - Response time: AC/DC operation times vary (ranges provided)
