IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:3RA23288XB301BB4
Free Shipping
In Stock

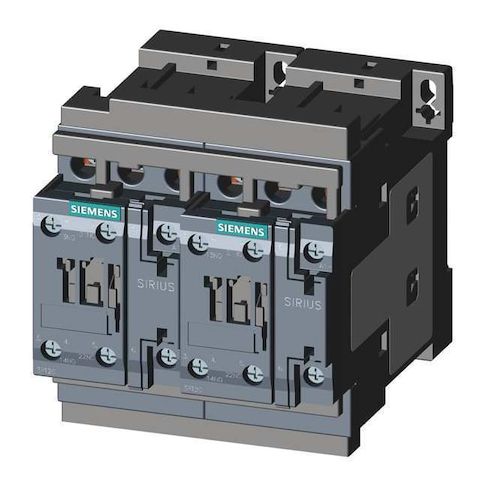

The Siemens IEC Magnetic Contactor is a reliable and versatile solution for controlling three-phase motors in a wide range of applications. Its reversing capability allows for easy switching of motor direction, making it ideal for use in conveyor systems, pumps, and other machinery. With a robust design and high operational durability, this contactor can handle demanding tasks with ease. Its compact size and screw terminal connections make it easy to install and integrate into existing systems. Suitable for use in various industries, including manufacturing, logistics, and construction, this contactor provides reliable and efficient control for your motor-driven equipment.
Top product features:
- Two normally open and two normally closed auxiliary contacts allow for complex control and monitoring of the device.
- The contactor can handle inductive loads up to 38 A and resistive loads up to 50 A, enabling operation with a wide range of electrical devices.
- The device can operate in a temperature range of -13 Degrees F to 140 Degrees F, providing reliability in various environmental conditions.
Top product applications:
- Motor control in industrial automation systems
- Reversing motor control in applications such as conveyor systems or robotic arms
- Power distribution and control in commercial and industrial settings
The SIEMENS - IEC Magnetic Contactor is a three-phase, reversing contactor with a coil voltage of 24V DC. It belongs to the SIRIUS 3RA23 series and has an S0 frame size. The contactor is designed for vertical mounting on DIN rails or surfaces without the need for an enclosure. It operates within a temperature range of -13 Degrees F to 140 Degrees F and can handle maximum voltage ratings up to 690V AC.
Key features include:
- - Auxiliary Contact Configuration: This contactor comes with a 2NO/2NC auxiliary contact form, which means it includes two normally open and two normally closed contacts.
- - Full Load Amps: The device is rated for operation with inductive loads up to 38 A and resistive loads up to 50 A.
- - Horsepower Ratings: This unit has been tested with horsepower ranges from zero (HP @ Three Phase -208V) to twenty-five (HP @ Three Phase -480V & HP @ Three Phase -575V).
- - Mechanical Operating Durability: Durability is tested up to ten million operations, indicating potential longevity of the device under standard conditions.
- - Reversing Capability: As a reversing magnetic contractor, it provides functionality for changing the direction of motor rotation
- user interaction may be required depending on specific setup and usage circumstances.
- - Terminal Connection Type: Screw terminals are used for secure electrical connections.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 5.00
- Package Height: 4.40
- Package Weight: 2.95
