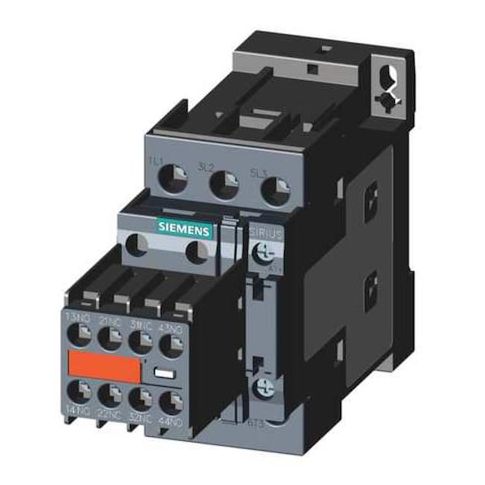

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20271AK643MA0
Free Shipping
In Stock
The SIEMENS IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications, including industrial control systems, power distribution, and automation. This 3-pole, non-reversing unit features a 110–120 V AC coil and 2NO/2NC auxiliary contacts, making it ideal for use in applications where high reliability and flexibility are required. With a maximum operating power of 15 kW, this contactor is suitable for use in a range of industries, including manufacturing, oil and gas, and renewable energy. Its compact design and easy installation make it a valuable addition to any electrical system.
Top product features:
- Operates within a 110–120 V AC coil voltage range
- Features 2NO/2NC auxiliary contacts for control and monitoring
- Rated for use within 15 kW (at 400V, ACand 28 kW (at 400V, ACpower levels
Top product applications:
- Motor control for a conveyor belt system in a manufacturing facility
- Control of a pump in a water treatment plant
- Start-up and shutdown control for a compressor in an industrial air conditioning system
The SIEMENS IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for operation within the specified electrical parameters. This 3-pole, non-reversing unit uses a 110–120 V AC coil and features auxiliary contacts configured as 2NO/2NC (2NC/2NO form). The unit is intended for installation using standard mounting methods
- wiring should be performed in accordance with applicable standards.
- Action: Non-Reversing
- - Coil Voltage: 110–120 V AC
- - Reversing: No
- - Aux. Contact Configuration: 2NO/2NC
- - Auxiliary Contact Form: 2NC/2NO
- - Contactor Style: IEC
- - Frame / Series / Code: S0
- Series: SIRIUS 3RT Safety Contactors
- - Frame Size: S0
- - Depth: 3.82 in
- Overall Depth: 3.63 in
- - Height: 1.77 in
- Overall Height: 5.87 in
- - Width: 1.77 in
- Overall Width: 2.13 in
- - Frequency: 50/60 Hz
- - Phase: Three
- - Number of Poles: 3
- - NEMA Enclosure Rating: No Enclosure
- - IP Rating: IP20
- - Mounting Style: DIN Rail, Surface
- - Mounting Hole Diameter: 0.19 in
- - Mounting Hole Distance - Height: 2.36 in
- - Mounting Hole Distance - Width: 1.38 in
- - Terminal Connection Type: Screw
- - Electrical Connection: Screws
- - Includes: Permanent Mounted Aux Contact -> Includes auxiliary contacts as specified
- proper installation required
- - Includes Auxiliary Contacts: Yes
- - Number of Auxillary Contacts: 4
- - Number of Normally Open Main Contacts: 3
- - Max. Operating Watts: 15 kW (at 400V, AC-3)
- 28 kW (at 400V, AC-1) -> Rated for use within these power levels under specified conditions
- - Maximum Voltage Rating: 690V AC -> Rated for operation up to this voltage when used according to specifications
- - Watts Loss: 2.3 W (Current Dependent)
- 10.5 W (Current Independent) -> Typical power dissipation values based on operational conditions
- actual performance may vary
- - Full Load Amps - Inductive: 32 A -> Rated for continuous operation at 32 A (inductive) within the specified electrical parameters
- - Full Load Amps - Resistive: 50 A -> Rated for continuous operation at 50 A (resistive) within the specified electrical parameters
- - Full Load Current - Inductive: 32 A -> Rated for continuous operation at 32 A (inductive) within the specified electrical parameters
- - Full Load Current - Resistive: 50 A -> Rated for continuous operation at 50 A (resistive) within the specified electrical parameters
- - HP @ 1 Phase - 120V: 2 hp
- - HP @ 1 Phase - 230V: 5 hp
- - HP @ 1 Phase - 240V: 5 hp
- - HP @ 3 Phase - 208V: 10 hp
- - HP @ 3 Phase - 240V: 10 hp
- - HP @ 3 Phase - 480V: 20 hp
- - HP @ 3 Phase - 600V: 25 hp
- - Hz: 50/60
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Item: IEC Magnetic Contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.80
- Package Height: 2.40
- Package Weight: 1.10
