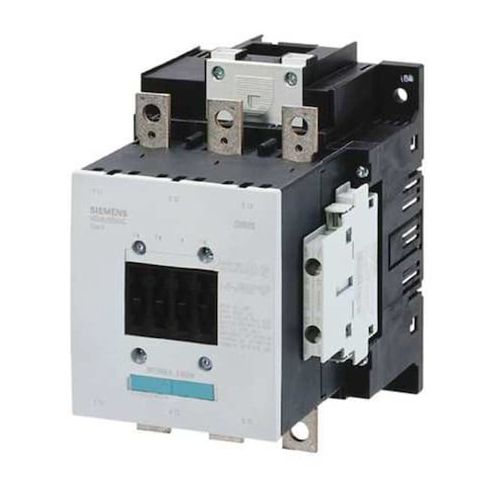

IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10546AF36
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device for power circuits. With a non-reversing action and 2NC/2NO auxiliary contacts, it provides precise control and monitoring capabilities. Its compact design and screw terminals make it easy to integrate into various applications, including industrial automation, HVAC systems, and renewable energy infrastructure. Rated for 1000V AC and 110V-127V AC/DC coil voltage, this contactor is suitable for use in a wide range of environments. Its high mechanical durability and long lifespan make it an ideal choice for demanding applications, ensuring reliable operation and reduced downtime.
Top product features:
- IEC Magnetic Contactor provides a non-reversing action
- The unit includes four auxiliary contacts (2NO/2NC)
- It uses screw terminals for wiring
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
SIEMENS IEC Magnetic Contactor, 3-pole, non-reversing, coil voltage 110V-127V AC/DC. An IEC magnetic contactor is an electrically operated switching device rated for switching power circuits within specified parameters. This unit includes four auxiliary contacts (2NO/2NC) and uses screw terminals for wiring. It is part of the SIRIUS 3RT10 series (frame size S6) and is rated up to 1000V AC, with no enclosure.
- Action: Non-Reversing
- - Auxiliary contacts: 4 total (2NO/2NC)
- - Coil Voltage: 110V-127V AC/DC
- - Contactor style/series: IEC
- SIRIUS 3RT10
- Frame Size S6
- - Poles: 3
- - Reversing: No
- - Electrical connections: Screw terminals
- - Mounting style: Surface
- - Enclosure: No Enclosure
- - Maximum voltage rating: 1000V AC
- - Phase/Hz: Three
- 50/60 Hz
- - Mechanical durability: 10,000,000 cycles
- - Dimensions: Depth 6.69 in
- Height 6.77 in
- Width 4.72 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 5.10
- Package Height: 7.20
- Package Weight: 7.35
