IEC Magnetic Contactor, 4NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT23161AK60
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4324187

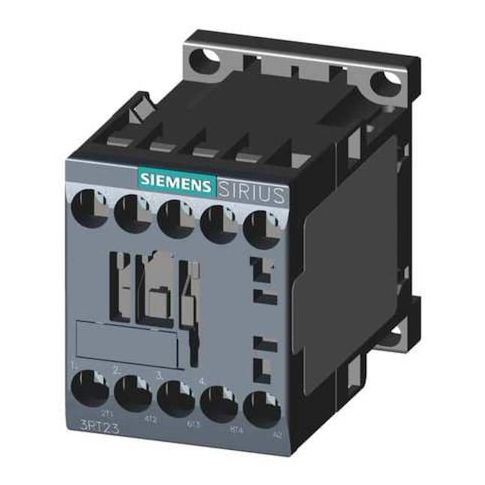

IEC Magnetic Contactor, 4NO, 110V-120V AC, 4 P, Non-Reversing, Screw
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications. With its non-reversing action and 4-pole design, it's ideal for use in industrial automation, HVAC systems, and other applications where precise control is required. The contactor's 110-120V AC coil voltage and 4NO auxiliary contacts provide flexible configuration options. Its compact design and DIN Rail or surface mounting style make it easy to integrate into existing systems. With a durable design and high cycle rating, this contactor is built to last, ensuring reliable operation in demanding environments.
Top product features:
- Operates within a specified voltage range of 110-120 V AC
- Has 4 normally open auxiliary contacts for additional control functionality
- Has 4 main contacts with a 4-pole configuration for reliable switching
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Power Distribution Systems
Rated for operation within the specified voltage range
- includes auxiliary contacts as specified.
- Action: Non-Reversing
- - Coil Voltage: 110–120 V AC
- - Auxiliary Contacts: 4NO
- - Main Contacts: 4 poles
- Phase: 3
- - Reversing: No
- - Terminal Connection: Screw
- - Mounting Style: DIN Rail, Surface
- - Series/Frame: SIRIUS 3RT23, Frame Size S00
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- Enclosure: No Enclosure
- - Includes Auxiliary Contacts: Yes
- - Embedded Surge Suppressor: No
- - Max Operating Watts: 4 kW at 400 V (AC-3/AC-4) This specifies maximum ratings but does not guarantee safe operation under all conditions.
- - Full Load Amps: Inductive 9 A
- Resistive 18 A
- - HP @ 1 Phase:
- - 120 V: 1/3 hp - 230 V: 1 hp - 240 V: 1 hp
- - HP @ 3 Phase:
- - 208 V: 2 hp - 240 V: 3 hp - 480 V: 5 hp - 575 V: 7 1/2 hp
- - Operating Temperature: -13 to 140 F This indicates rated operating temperature range but does not imply safety outside this range.
- - Mechanical Durability: 30,000,000 cycles This indicates durability rating without guaranteeing performance over lifespan.
- - Dimensions: Width 2.45 in
- Height 1.95 in
- Depth 3.25 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
Product info last updated on February 7, 2026 10:50am UTC
Category: Industrial Electrical Controls and Automation
