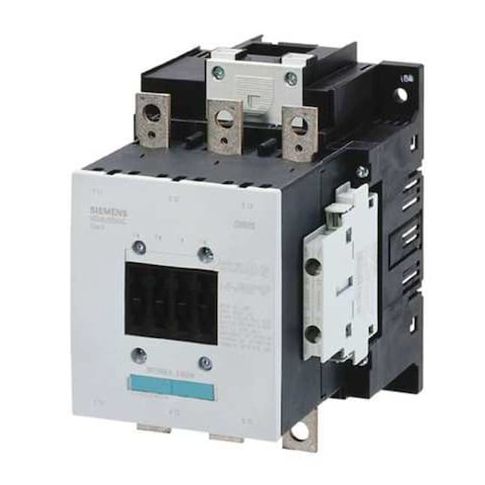

IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10556AF36

• The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch used to control power circuits. It is rated for operation within the specified voltage range

• includes auxiliary contacts as specified. Conforms to standard configurations for this series
• features screw-terminal connections and surface mounting options.

  - Coil Voltage: 110–127 V AC/DC

• - Action: rated for non-reversing operation within its intended application
• - Poles: 3
• - Main contacts: contains three normally open main contacts as specified
• - Auxiliary Contacts: includes four auxiliary contacts configured as specified
• - Frame/Series: conforms to the specifications of the SIRIUS 3RT10 series, frame size S6
• - Connection Type: utilizes screw terminal connection type per design specifications
• - Enclosure: designed without an enclosure
• suitable for appropriate installation environments
• - Mounting: intended for surface mounting in vertical position within compatible settings
• - Mounting hole diameter: has mounting holes with a diameter of approximately 0.36 inches as specified
• - Mounting hole distance (Height): mounting hole spacing matches approximate dimensions provided, suitable for compatible installations
• - Dimensions: overall dimensions are approximately as indicated, consistent with product specifications
• - Phase: designed for three-phase power systems within rated parameters
• - Frequency: 50/60 Hz
• - Maximum Voltage Rating: 1000 V AC
• - Full Load Amps: Inductive 150 A
• Resistive 185 A
• - Embedded Surge Suppressor: No
• - Minimum Operating Temperature: -13 °F
• - Mechanical Durability: 10,000,000 cycles
• - Power Loss: 9 W (current dependent)
• 5.2 W (current independent)
• - Standards: REACH Art 33, WEEE (2012/19/EU)
