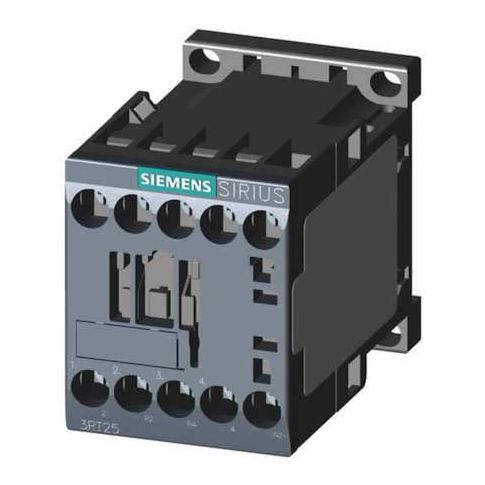

IEC Magnetic Contactor, No Auxiliary Contacts, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT25181AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient control device ideal for switching power circuits in various industrial applications. Its compact and modular design makes it compatible with standard control panel configurations, allowing for easy integration into existing systems. With a 220-240 V AC coil and 4-pole non-reversing action, this contactor is suitable for use in control panels, switchgear, and other applications where high reliability and durability are required. Its long lifespan and high power rating make it an excellent choice for demanding industrial environments, including manufacturing, processing, and power distribution systems.
Top product features:
- Switches power circuits with a 220-240 V AC coil
- Has 2 NC / 2 NO main contacts for reliable circuit control
- Operates in a temperature range of -13°F to 140°F for durability in various environments
Top product applications:
- Industrial Automation
- Control Panel Configurations
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing control device (No Auxiliary Contacts) with a 220-240 V AC coil. It belongs to the SIRIUS 3RT25 series and is rated for switching power circuits within specified load ranges. It is compact and modular, compatible with standard control panel configurations.
- Item: IEC Magnetic Contactor
- - Series / Frame: SIRIUS 3RT25, Frame Size S00
- - Action / Reversing: Non-Reversing (Reversing: No)
- - Auxiliary Contacts: No auxiliary contacts (0)
- - Main Contacts: 2 NC / 2 NO
- - Poles: 4
- - Coil Voltage: 220–240 V AC
- - Frequency / Phase: 50/60 Hz, 3-phase
- - Electrical Connection: Screws
- Terminal Connection Type: Screw
- - Mounting: DIN Rail, Surface
- Mounting Position: Vertical
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Dimensions (Overall): 2.30 in W x 2.45 in H x 6.50 in D
- - Mounting Hardware: Mounting hole diameter 0.20 in
- hole distances 1.97 in (H) and 1.38 in (W)
- - Temperature Range: -13°F to 140°F
- - Durability: Mechanical 30,000,000 cycles
- - Power rating: Max operating watts 13 kW (400 V, AC-4 and AC-1), 8 kW (400 V, AC-3)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
