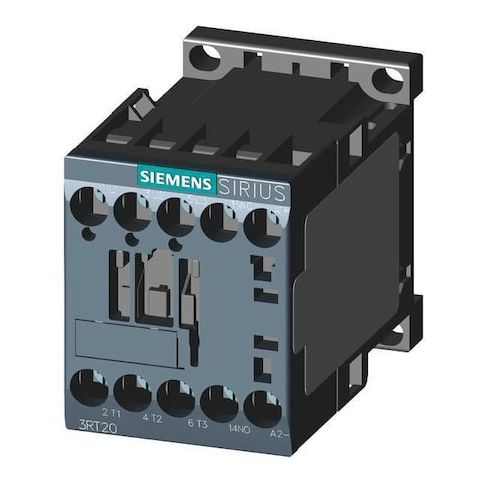

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20171BB41
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient control device suitable for a variety of applications, including industrial automation and control systems. Its non-reversing action and 3-pole design make it ideal for use in circuits that require a consistent flow of power. The device's 24V DC coil and screw terminal connections provide easy installation and maintenance. With a high mechanical durability of 30 million cycles, this contactor can withstand heavy use in demanding environments. Its compact design and DIN Rail or surface mounting capabilities make it a versatile solution for a range of industrial applications.
Top product features:
- Has 3 normally open main contacts and 1 auxiliary contact, with screw terminal connections.
- Operates within a specified temperature range of -13°F to 140°F.
- Rated for operation within specified voltage ranges up to 690V AC.
Top product applications:
- Motor control in industrial automation
- Control systems for conveyor belts and other machinery
- Automated lighting control systems
This IEC Magnetic Contactor from the SIRIUS 3RT20 series (Frame S00) is a 3-pole, non-reversing control device with a 24 V DC coil. Has 3 normally open main contacts and 1 auxiliary contact, with screw terminal connections. Compatible with DIN Rail or surface mounting methods
- enclosure is not included
- IP20-rated environments.
- Action: Non-Reversing
- - Poles/Main Contacts: 3 NO
- - Auxiliary Contacts: 1 NO
- - Coil Voltage: 24 V DC
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Termination: Screws
- - Mounting Style: Compatible with DIN Rail or surface mounting methods
- - Enclosure: Not included
- - IP Rating: IP20
- - Rated for operation within specified voltage ranges up to 690V AC
- - Phase: Three
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - Operates within the specified temperature range of -13°F to 140°F
- - Overall Dimensions: Width 2.3 in
- Height 2.4 in
- Depth 3.3 in
- - Includes Auxiliary Contacts: Yes
- - Reversing: No
- - Embedded Surge Suppressor: No
- - Mechanical Durability: 30,000,000 cycles
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.20
- Package Height: 2.00
- Package Weight: 0.65
