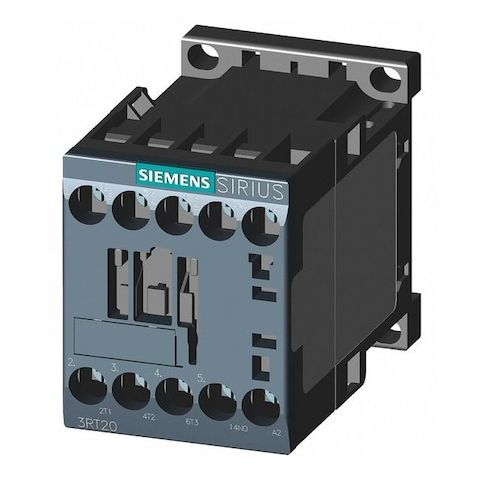

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AP61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in a variety of applications. With its 3-pole design and non-reversing operation, it provides a safe and controlled switching mechanism for motors and other equipment. Suitable for use in industrial settings, such as manufacturing and processing facilities, this contactor is also ideal for use in commercial and residential settings, including lighting and HVAC systems. Its compact design and easy installation make it a convenient choice for a wide range of applications, including control panels, machines, and electrical distribution systems.
Top product features:
- Non-Reversing Operation: The contactor allows for one-way switching, preventing accidental reversals of the circuit.
- Normally Open Auxiliary Contact: The contactor includes a normally open auxiliary contact that can be used to provide additional control or monitoring functions.
- Screw Electrical Connections: The contactor uses screws for electrical connections, providing a secure and reliable means of making and breaking circuit connections.
Top product applications:
- Industrial Automation Systems
- Automotive Electrical Systems
- Power Distribution Panels
Siemens IEC Magnetic Contactor, 3-pole, with 1 normally open auxiliary contact, coil rated at 220-240 V AC, and non-reversing operation. It is part of the SIRIUS 3RT20 series (frame size S00) and uses screws for electrical connections
- rated for switching power circuits within specified standards and conditions.
- Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Main Contacts: 3 Normally Open
- - Auxiliary Contacts: 1 NO
- - Coil Voltage: 220-240 V AC
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Mounting Position: Vertical
- - Electrical Connection: Screws
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Max Operating Watts: 6 kW (AC-3)
- 13 kW (AC-1)
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Mechanical Durability: 30,000,000
- - Dimensions (H x W x D): 3.08 in x 1.97 in x 2.45 in
- - Standards: REACH Art 33, WEEE
- - Embedded Surge Suppressor: No
- - Includes Auxiliary Contacts: Yes
- - Item: IEC Magnetic Contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.50
