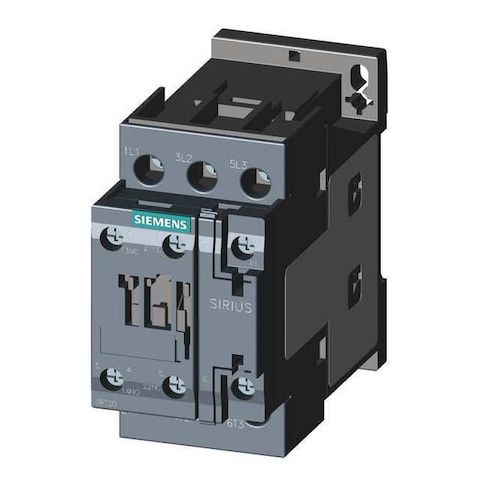

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrically operated switch ideal for a wide range of applications, including industrial automation, control systems, and power distribution. Its 3-pole, non-reversing design ensures safe and controlled power flow, while the 220-240V AC coil and screw terminal connections provide easy installation and maintenance. Compatible with DIN Rail or surface mounting, this contactor is perfect for use in harsh environments, offering durability and reliability in temperatures up to 40°C. Suitable for applications requiring high power ratings, such as motor control and lighting systems, the Siemens IEC Magnetic Contactor is a trusted choice for professionals.
Top product features:
- The product has 3 main contacts and 2 auxiliary contacts, including 1 normally open and 1 normally closed.
- The product is non-reversing, ensuring consistent operation.
- The product features screw terminal connections for easy installation.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrically operated switch with a 220–240 V AC coil. The device includes auxiliary contacts (1 normally open / 1 normally closed)
- it features screw terminal connections
- it is part of the SIRIUS 3RT20 series (frame S0). Compatible with DIN Rail or surface mounting as specified. Electrical ratings are provided at specified voltages, including a maximum operating voltage of up to 690 V AC
- power ratings are based on standard testing conditions. It has an IP20 enclosure rating with no enclosure included.
Key features
- - Poles and contacts: 3 main contacts (3 normally open) and 2 auxiliary contacts (1NO/1NC)
- - Reversing: Non-Reversing
- - Coil and voltage: 220–240 V AC
- - Frame/series: Frame S0, Series SIRIUS 3RT20
- - Mounting and terminals: compatible with DIN Rail or surface mounting as specified
- mounting vertical
- screw terminals
- - Enclosure and rating: IP20
- No Enclosure
- - Max voltage and power: Electrical ratings are provided at specified voltages, including a maximum operating voltage of up to 690 V AC
- power ratings are based on standard testing conditions
- - Mechanical and thermal: Durability specifications are based on standard testing cycles
- temperature range indicates typical operational environment parameters
- - Dimensional and mounting details: Overall 3.75 in W x 3.55 in H x 1.70 in D
- mounting holes: diameter 0.19 in
- hole spacing 2.36 in (height) x 1.38 in (width)
- - Electrical ratings: Full Load Amps Inductive 16 A
- Full Load Amps Resistive 40 A
- - Phase and frequency: Three-phase
- 50/60 Hz
- - Standards and notes: Standards include REACH Art 33, WEEE
- Includes Auxiliary Contacts
- - Additional: Reversing: No
- Embedded surge suppressor: No
- Response times vary by operation and voltage
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.90
