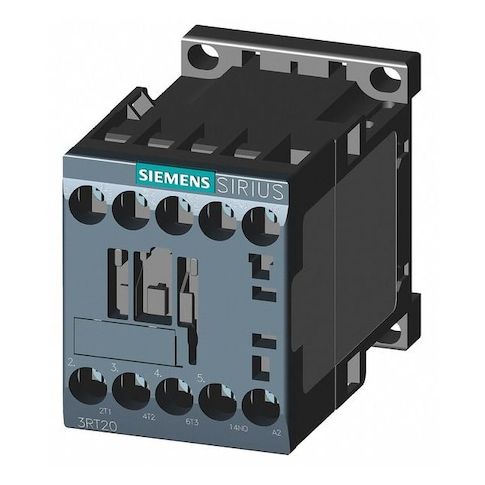

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AB01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switching device ideal for use in IEC control applications. With a 24 V AC coil and 3-pole non-reversing action, it provides precise control and switching capabilities. The device features 1 normally open auxiliary contact and screw terminals for easy connections. Suitable for DIN Rail or surface mounting, it's perfect for use in industrial control panels, automation systems, and other applications requiring precise electrical control. Its compact design and high durability make it an excellent choice for demanding environments, ensuring reliable operation and extended lifespan.
Top product features:
- Non-Reversing Action
- Includes 1 normally open auxiliary contact
- 3 normally open main contacts
Top product applications:
- Industrial Control Panels
- Automated Manufacturing Lines
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device with a 24 V AC coil. It belongs to the SIRIUS 3RT20 series (frame S00) and is intended for use in IEC control applications within specified parameters. It includes 1 normally open auxiliary contact and has screw terminals. The unit is compatible with DIN Rail or surface mounting in a vertical orientation and is rated for operation within the specified voltage and frequency ranges, with an IP20 enclosure rating. It does not include an enclosure
- suitable enclosures must be selected separately.
Key features
- - Action: Non-Reversing
- Reversing: No
- Poles: 3
- - Coil: 24 V AC
- - Auxiliary contacts: Includes 1 auxiliary contact (1NO)
- - Main contacts: 3 normally open
- - Contact configuration and frame: Frame S00
- Frame Size S00
- Series SIRIUS 3RT20
- - Electrical connections: Screws
- - Mounting: DIN Rail, Surface
- Mounting Position: Vertical
- - Enclosure: Does not include an enclosure
- suitable enclosures must be selected separately
- IP Rating: IP20
- - Voltage and power: Maximum 690V AC
- Max. Operating Watts: 4 kW (AC-3) / 13 kW (AC-1)
- - Currents and HP: Full Load Amps Inductive 9 A
- Resistive 22 A
- HP @ various voltages (120V: 1/3 hp
- 230V: 1 hp
- 240V: 1 hp
- 208V 2 hp
- 240V 3 hp
- 480V 5 hp
- 600V 7 1/2 hp)
- - Mechanical durability: tested to withstand up to 30 million operational cycles under specified conditions
- - Temperature range: rated for operation within the specified temperature range (-25°C to +60°C)
- - Dimensions: Height 1.95 in
- Width 2.40 in
- Depth 3.25 in
- - Mounting hole diameter and spacing: Hole Ø 0.2 in
- Height spacing 1.97 in
- Width spacing 1.38 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Additional: Embedded Surge Suppressor: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
