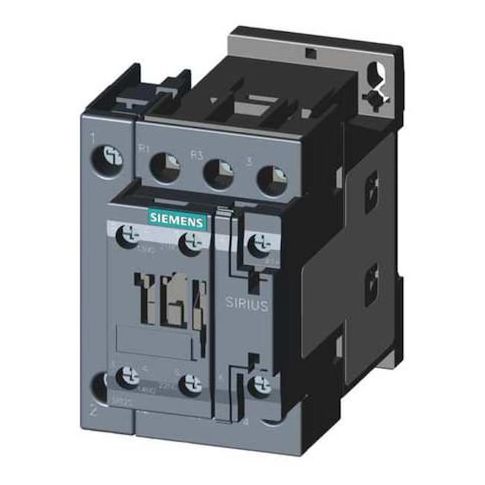

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT25261BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in 3-phase systems. Featuring a 24V DC coil and non-reversing action, this 4-pole contactor is ideal for applications requiring precise control and high durability. With 2NC/2NO main contacts and 1NO/1NC auxiliary contacts, it provides flexible control options. Suitable for use in a variety of industries, including manufacturing, energy, and transportation, this contactor offers a long lifespan of up to 10 million mechanical cycles and operates within a temperature range of -13°F to 140°F. Its compact design makes it easy to integrate into existing systems.
Top product features:
- It has a non-reversing action
- It features two auxiliary contacts (1NO/1NC) and main contacts configured as 2NC/2NO
- It is rated for 10,000,000 mechanical cycles for durability
Top product applications:
- Industrial Control Systems
- Power Distribution Units
- Motor Control Circuits
The Siemens IEC Magnetic Contactor is a 4-pole, electrically operated switching device rated for use in compliance with IEC standards. It features a 24 V DC coil and a non-reversing action, with two auxiliary contacts (1NO/1NC) and main contacts configured as 2NC/2NO. The unit uses an S0 frame and is compatible with DIN Rail or surface mounting within specified orientations, with screw terminals for wiring. It has an IP20 enclosure rating (no enclosed housing). This model is part of the SIRIUS 3RT25 family and is specified for 3-phase systems.
Key features
- - Coil Voltage: 24 V DC
- - Poles: 4
- - Main contacts: 2 normally closed (NC) and 2 normally open (NO)
- - Auxiliary contacts: 2 (1NO/1NC)
- - Action: Non-Reversing
- - Frame: S0 (Includes S0 Frame)
- - Mounting: DIN Rail, Surface
- Orientation: Vertical
- - Electrical connection: Screws
- - Enclosure: IP20 enclosure rating (no enclosed housing)
- - Series: SIRIUS 3RT25
- - Phase: 3
- - Durability: specified durability of 10,000,000 mechanical cycles
- - Temperature: operates within the temperature range of -13°F to 140°F
- - Dimensions (approx.): Height 5.12 in, Width 3.04 in, Depth 3.67 in
- - Standards: REACH, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.60
- Package Height: 3.00
- Package Weight: 1.45
