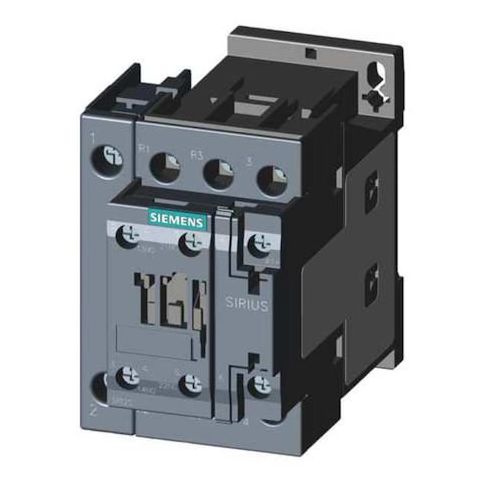

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT25261AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching solution for industrial control applications. Rated for operation within specified control circuit parameters, this 4-pole, non-reversing electric switch is compatible with coil voltages of 220–240 V AC. With two auxiliary contacts and main contacts configured as 2NC/2NO, it provides a high level of control and flexibility. Suitable for use in environments supplied with 50/60 Hz power sources, this contactor is ideal for applications such as motor control, lighting, and HVAC systems, offering improved reliability and reduced downtime in industrial settings.
Top product features:
- Action: Non-Reversing
- Coil Voltage: 220–240 V AC
- Main Contacts: 2NC/2NO
Top product applications:
- Industrial Automation Systems
- Control Panels for HVAC Systems
- Machine Controls for Manufacturing Lines
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing electric switch rated for operation within specified control circuit parameters. It is compatible with coil voltages of 220–240 V AC within the specified voltage range and includes two auxiliary contacts (1NO/1NC) plus main contacts configured as 2NC/2NO. The unit is part of the SIRIUS 3RT25 series (frame S0) and offers DIN Rail or surface mounting with screw terminals. It is provided without an enclosure and has an IP20 rating, intended for use in environments supplied with 50/60 Hz power sources as per product specifications.
Key features
- - Action: Non-Reversing
- - Coil Voltage: 220–240 V AC
- - Phase: 3
- - Poles: 4
- - Main Contacts: 2NC/2NO
- - Auxiliary Contacts: 2 (1NO/1NC)
- - Frame Size / Series: S0 / SIRIUS 3RT25
- - Mounting Style: DIN Rail, Surface
- Electrical Connection: Screws
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Reversing Capability: Non-Reversing
- - Dimensions (Overall): Width 3.04 in, Height 5.12 in, Depth 3.67 in
- - Durability: Mechanical operating cycles 10,000,000
- - Operating Temperature: -13 to 140 °F
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.10
- Package Height: 3.60
- Package Weight: 1.05
