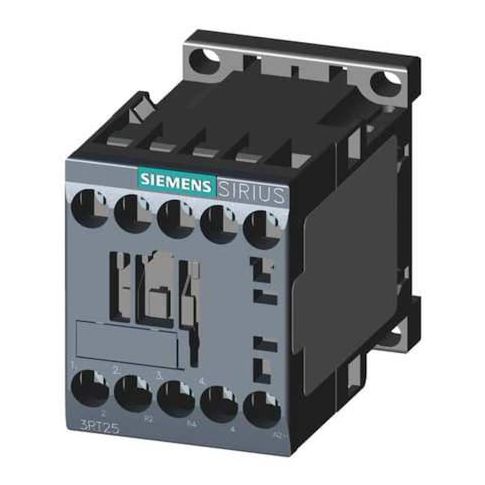

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT25171BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient device designed for a wide range of applications. Suitable for vertical mounting on DIN rail or surface, it can be used in various industries such as manufacturing, oil and gas, and water treatment. This 4-pole contactor features a compact S00 frame size and operates at 24V DC, making it ideal for control systems. With its high durability and compliance with REACH Art 33 and WEEE standards, it provides a safe and reliable solution for controlling electrical loads up to 5 horsepower. Its versatility and reliability make it a valuable addition to any industrial setting.
Top product features:
- Full load amps for both inductive (12 A) and resistive (20 A) loads.
- Horsepower capabilities vary with voltage: Single Phase 120V AC (up to potential of 1/3 hp), Single Phase 240V AC (up to potential of 1 hp), Three Phase 240V AC (up to potential of 3 hp), Three Phase 480V AC (up to potential of 5 hp).
- Operating temperature range is from -13 Degrees F to 140 Degrees F.
Top product applications:
- Industrial Control Systems
- DC Motor Control
- Automation Systems for Manufacturing
The SIEMENS - IEC Magnetic Contactor is a non-reversing, 4-pole device with no auxiliary contacts. It has been designed for operation with a coil voltage of 24V DC and features an electrical connection via screws. The contactor belongs to the SIRIUS 3RT25 series and comes in an S00 frame size. While it does not include any enclosure, thus lacking a NEMA rating, it carries an IP20 rating for protection against touch by fingers and objects greater than 12mm. This device is suitable for vertical mounting on either a DIN rail or surface, as per user preference and safety guidelines.
Key features of this product include:
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.90
- Package Weight: 0.65
