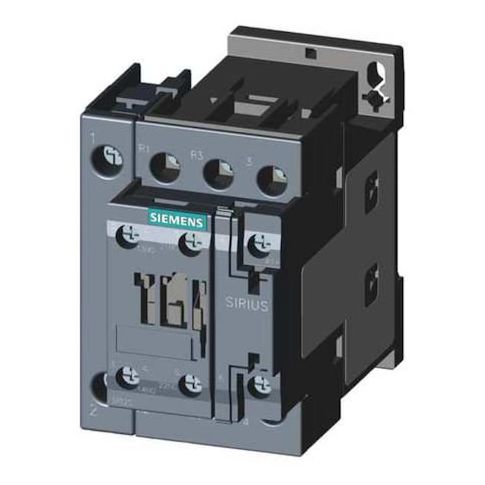

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT25261AK60

• The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switch intended for switching applications within electrical systems. It is a 4-pole, non-reversing device with a 110–120 V AC coil, rated for operation within the specified voltage ranges. It includes auxiliary contacts as specified in an S0 frame and is configured with screw terminals for wiring connections, with mounting on DIN Rail or a surface. The unit has no enclosure included and carries an IP20 rating.

  Key features

• - Coil Voltage: 110–120 V AC
• - Action: Non-Reversing
• - Poles: 4
• - Phase: 3
• - Reversing: No (Non-Reversing)
• - Auxiliary Contacts: Includes auxiliary contacts as specified (2 total: 1NC/1NO)
• - Main Contacts: 2 NC / 2 NO
• - Frame/Series: Frame S0
• Series SIRIUS 3RT25
• - Enclosure: No Enclosure
• IP20
• - Electrical Connection: Screw terminals
• - Mounting Style: DIN Rail, Surface
• - Mounting Details: Hole diameter 0.20 in
• Hole distance (Height) 1.97 in
• Hole distance (Width) 1.38 in
• - Overall Dimensions: Height 5.1 in
• Width 3.6 in
• Depth 3.05–3.82 in (varies by measurement)
• - Frequency: 50/60 Hz
• - Max Load: Inductive 25 A
• Resistive 35 A
• - HP Ratings: 2 hp @ 120 V
• 3 hp @ 230–240 V
• 7.5 hp @ 240 V (3-phase)
• 15 hp @ 480 V (3-phase)
• - Includes: S0 Frame
• - Mounting Orientation: Vertical
• - Surge Protection: Embedded surge suppressor: No
• - Standards/Regulatory: REACH Art 33, WEEE (2012/19/EU)
