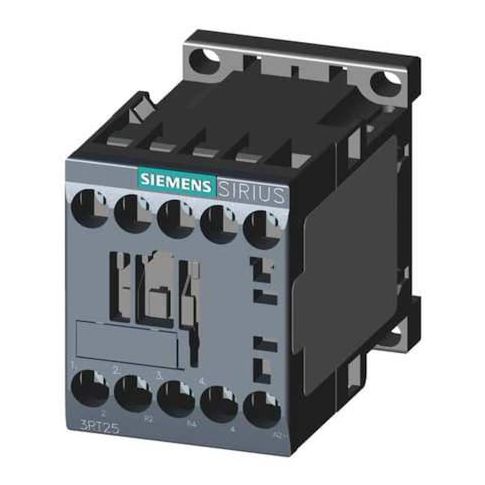

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT25181BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switch for various industrial applications. Suitable for use in control circuits, it provides a 4-pole, non-reversing action for precise control of motors and other devices. With a 24V DC coil and screw terminals for easy wiring, this contactor is perfect for use in applications where a high level of accuracy and reliability is required. Its compact design and DIN rail or surface mounting options make it ideal for use in control panels, machinery, and other industrial settings where space is limited.
Top product features:
- The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing IEC-style switch with a 24 V DC coil.
- It has a 2NC/2NO main contact configuration.
- It is rated for IP20 ingress protection.
Top product applications:
- General Purpose Control
- Powering and controlling a wide range of devices
- Industrial Automation and Control Systems
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing IEC-style switch with a 24 V DC coil. It has no auxiliary contacts and uses screw terminals for wiring. It belongs to the SIRIUS 3RT25 family (Frame S00) and is supplied without an enclosure. Includes the S00 frame.
- Coil voltage: rated for operation within the specified voltage ranges
- - Action: Non-Reversing
- - Poles: 4
- - Main contact configuration: 2NC/2NO
- - Auxiliary contacts: No
- - Electrical connection: Screws
- - Frame/Series: S00, SIRIUS 3RT25
- - Enclosure: does not include an enclosure
- rated for IP20 ingress protection
- - Mounting: DIN Rail, Surface
- - Mounting details: Mounting hole diameter 0.20 in
- height spacing 1.97 in
- width spacing 1.38 in
- mounting position vertical
- - Phase: 3
- - Dimensions (Overall): Height 2.45 in
- Width 2.60 in
- Depth 3.50 in
- - Max operating watts: does not guarantee performance at specific power levels
- - Full load current: rated for currents within specified limits
- - Horsepower ratings: rated according to standard horsepower ratings based on typical conditions
- - Mechanical durability: 30,000,000 cycles
- - Operating temperature: -13 °F to +140 °F
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Includes: S00 Frame
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.65
