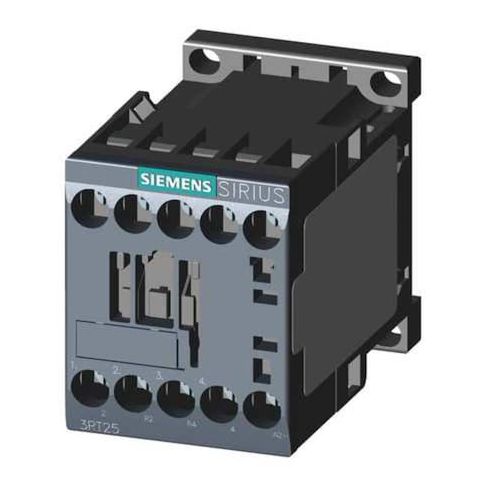

IEC Magnetic Contactor, No Auxiliary Contacts, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT25181AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. Designed for use in industrial settings, this 4-pole non-reversing contactor is ideal for controlling motors, pumps, and other equipment that require precise and consistent power supply. Its 110V-120V AC coil and DIN Rail compatibility make it easy to integrate into existing systems. With its compact design and IP20 ingress protection rating, this contactor is perfect for use in harsh environments. Its non-reversing action ensures safe and reliable operation, making it a valuable asset for any industrial facility.
Top product features:
- The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for controlling power circuits within specified parameters.
- It uses a 110V-120V AC coil.
- It is a 4-pole, non-reversing unit with no auxiliary contacts.
Top product applications:
- Industrial Automation Systems
- Control Panels and Enclosures
- Machine Automation and Robotics
The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for controlling power circuits within specified parameters. This 4-pole, non-reversing unit has no auxiliary contacts and uses a 110V-120V AC coil. It is part of the SIRIUS 3RT25 series (frame size S00) and is compatible with DIN Rail and surface mounting using screw terminals. The enclosure is not included and it has an IP20 ingress protection rating.
- Action: Non-Reversing
- - Auxiliary Contacts: No Auxiliary Contacts
- - Coil Voltage: 110V-120V AC
- - Poles: 4
- - Reversing: No
- - Mounting Style: DIN Rail
- Surface mounting using screw terminals
- - Terminal Connection Type: Screw
- - IP Rating: IP20 ingress protection rating
- - Phase: 3
- - Frequency: 50/60 Hz
- - Frame Size: S00
- - Series: SIRIUS 3RT25
- - Overall dimensions: 3.40 in (depth) × 2.45 in (height) × 2.20 in (width)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
