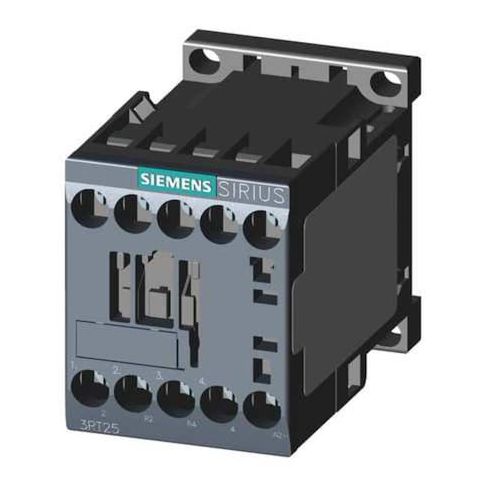

IEC Magnetic Contactor, No Auxiliary Contacts, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT25171AK60

• The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing switch rated for switching applications within specified parameters. It is designed for operation with a coil voltage of 110–120 V AC and has no auxiliary contacts. It uses an S00 frame (SIRIUS 3RT25 series) and is compatible with DIN rail and surface mounting methods.

  - Poles: 4

• - Action: Non-Reversing
• - Reversing: No
• - Auxiliary Contacts: No
• - Coil Voltage: 110–120 V AC
• - Frame Size / Series: S00
• SIRIUS 3RT25
• - Mounting Style: DIN Rail, Surface
• - Terminal Connection: Screw
• - Frequency: 50/60 Hz
• - Phase: 3
• - IP Rating: IP20
• - Enclosure: No Enclosure
• - Full Load Amps: rated for full load currents of up to 12 A (inductive) and 20 A (resistive) under specified conditions
• - HP (Single Phase / Volts): rated horsepower at specified voltages within the product's operational specifications
• - HP (Three Phase / Volts): rated horsepower at specified voltages within the product's operational specifications
• - Max Operating Watts: maximum operating wattage ratings based on standard test conditions and application types
• - Operating Temperature: -13°F to 140°F
• - Mechanical Durability: mechanical durability rating based on testing standards but does not imply guaranteed lifespan in all conditions
• - Mounting Details: Mounting Hole Diameter 0.2 in
• Hole Distances Height 1.97 in
• Width 1.38 in
• - Overall Dimensions: 3.08 in H × 1.97 in W × 2.45 in D
• - Includes: S00 Frame
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Embedded Surge Suppressor: No
• - Number of Auxiliary Contacts: 0
• - Normally Closed Main Contacts: 2
• - Normally Open Main Contacts: 2
• - Item: IEC Magnetic Contactor
• - Reversing Capability: Non-Reversing
