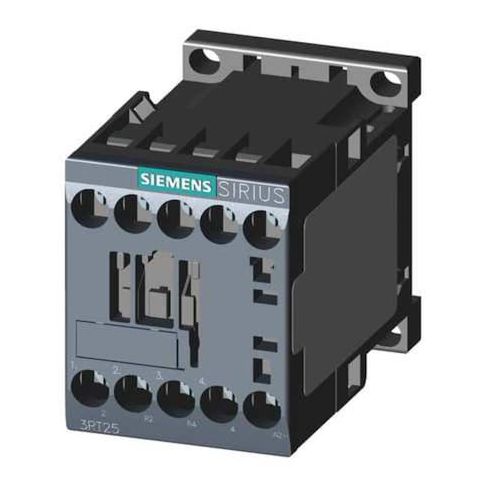

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT25161BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications, including motor control and power distribution. Its four-pole, 24V DC coil design ensures smooth operation within IEC standards, while its non-reversing action prevents accidental motor reversal. This contactor is ideal for use in a range of industries, including manufacturing, oil and gas, and water treatment, where precise control and safety are paramount. With its compact design and easy mounting options, the SIRIUS 3RT25 series contactor offers a convenient and cost-effective solution for applications requiring high power handling and reliability.
Top product features:
- Four-pole operation allows for bi-directional control of multiple loads.
- Non-reversing action ensures that the contactor only operates in one direction, preventing accidental reversals.
- Screw terminal connections provide secure and reliable electrical connections.
Top product applications:
- Industrial Automation
- Machine Control Systems
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a four-pole, 24 V DC coil, non-reversing IEC magnetic contactor rated for operation within IEC standards. It has no auxiliary contacts, uses screws for electrical connections, and is compatible with DIN Rail and surface mounting options. It belongs to the SIRIUS 3RT25 series with frame size S00 and includes the S00 frame.
- Coil voltage: 24 V DC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 4
- - Main contacts: 2 normally closed, 2 normally open
- - Auxiliary contacts: No
- - Terminal connection type: Screw
- - Mounting style: DIN Rail, Surface
- - Frame size: S00
- - Series: SIRIUS 3RT25
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Rated for operation up to 400 V within specified conditions
- - Phase: 3
- - Width: 3.5 in
- - Height: 1.95 in
- - Dimensions are provided
- actual performance may vary based on installation
- - Includes: S00 Frame
- - Maximum operating watts: 11 kW (at 400 V, AC-4)
- 4 kW (at 400 V, AC-3)
- 11 kW (at 400 V, AC-1)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.65
