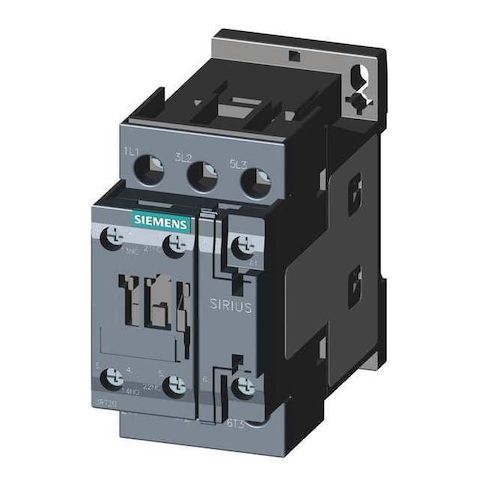

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20281AP60

• The SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts and is intended for use in controlling motors and industrial loads within specified parameters. This unit has a coil voltage of 220–240 V AC, screw terminals, and is part of the SIRIUS 3RT20 series with frame size S0. It includes two auxiliary contacts (1NO/1NC).

  - Action: Non-Reversing

• - Coil Voltage: 220–240 V AC
• - Poles: 3
• - Auxiliary Contacts: 2 (1NO/1NC)
• - Auxiliary Contact Form: 1NC/1NO
• - Electrical Connection: Screw
• - Mounting Style: DIN Rail, Surface
• - Frame Size: S0
• - Series: SIRIUS 3RT20
• - IP Rating: IP20
• - Enclosure: No enclosure included
• - Maximum Voltage Rating: rated for operation up to a maximum voltage of 690V AC within specified conditions
• - Frequency: rated for operation at frequencies of 50 or 60 Hz as per specifications
• - Mechanical Durability: tested durability under specific test conditions
• actual lifespan may vary based on usage
• - Overall Dimensions (W x H x D): 1.77 in x 3.6 in x 3.9 in
• - Phase: Three
• - Standards: REACH Art 33, WEEE (2012/19/EU)
