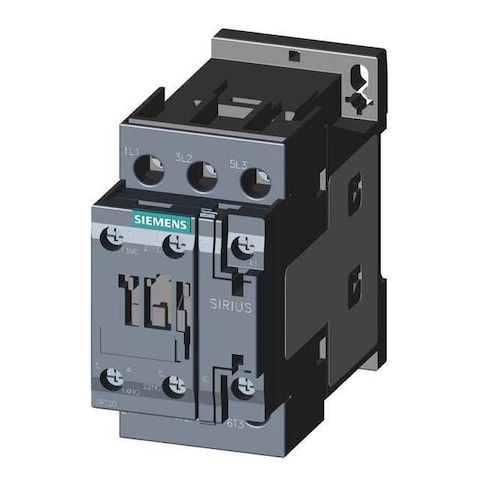

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20281AN20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in IEC-based systems. Suitable for a wide range of applications, including industrial automation and power distribution, this 3-pole, non-reversing contactor is designed for use in harsh environments. With a 208V AC coil and 1NO/1NC auxiliary contacts, it provides precise control and flexibility. Its compact design and screw terminals make it easy to install and integrate into existing systems. Ideal for use in factories, power plants, and other industrial settings, this contactor offers reliable and efficient control, minimizing downtime and ensuring smooth operation.
Top product features:
- The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC-based systems.
- It uses a 208 V AC coil and includes 1NO/1NC auxiliary contacts (2 auxiliary contacts in total).
- It has screw terminals for electrical connections and mounting options for DIN Rail or surface installation.
Top product applications:
- Industrial Automation
- Automotive Applications
- HVAC Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC-based systems. It uses a 208 V AC coil and includes 1NO/1NC auxiliary contacts (2 auxiliary contacts in total). The unit is part of the SIRIUS 3RT20 family, frame size S0, with screw terminals and mounting options for DIN Rail or surface installation. Compatible with specified environmental conditions
- consult installation guidelines for proper setup.
Key features
- - Rated for coil voltage of 208 V AC
- - Poles/Phase: 3 poles
- Three-phase
- - Reversing: Non-Reversing
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- - Electrical connections: Screw terminals
- - Frame/Series: S0
- SIRIUS 3RT20
- - Mounting: DIN Rail, Surface
- - Rated for maximum operational voltage of 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Currents: Inductive 38 A
- Resistive 50 A
- - Specified mechanical endurance
- actual lifespan may vary based on usage conditions
- - Rated operating temperature range: -13°F to 140°F
- - Dimensions: Width 1.77 in
- Height 3.60 in
- Depth 3.82 in
- - Mounting hardware: Mounting hole diameter 0.19 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.90
