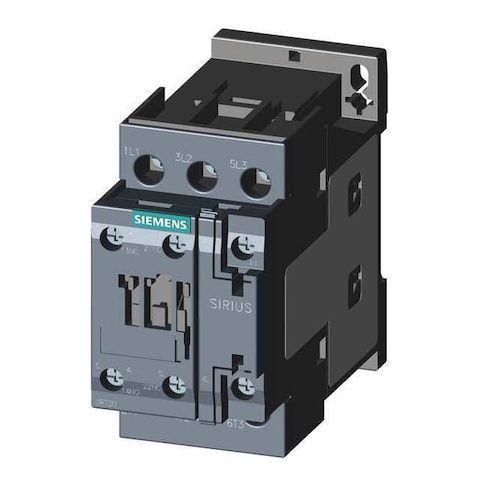

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20281AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in IEC-standard control system applications. Rated for use with 110-120 V AC coils, this 3-pole, non-reversing contactor features two auxiliary contacts and is compatible with DIN Rail and surface mounting. Its compact design and durable construction make it ideal for use in a variety of industries, including manufacturing, HVAC, and power distribution. With a mechanical lifespan of up to 10 million cycles, this contactor provides reliable performance and long-term value, making it a great choice for applications where high reliability and efficiency are required.
Top product features:
- The Siemens IEC Magnetic Contactor features a non-reversing action.
- It has a 3-pole design.
- It has two auxiliary contacts, one normally open (1 NO) and one normally closed (1 NC), wired via screws.
Top product applications:
- IEC Magnetic Contactor can be used in IEC-standard control system applications.
- It is suitable for use within industrial automation systems.
- The product can be used in control systems requiring a 3-pole, non-reversing, coil-driven switch.
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch rated for use within IEC-standard control system applications. It features a 110–120 V AC coil, two auxiliary contacts (1 NO and 1 NC) wired via screws, and is compatible with DIN Rail and surface mounting as specified.
- Type/Action: IEC Magnetic Contactor
- Non-Reversing
- 3 poles
- - Coil Voltage: 110–120 V AC
- - Auxiliary Contacts: 2 total (1 NO / 1 NC)
- - Main Contacts: 3 normally open
- - Series/Frame: SIRIUS 3RT20
- Frame Size S0
- - Electrical Connection: Screw terminals
- - Enclosure/IP: designed for indoor use with IP20 protection rating
- - Frequency/Phase: 50/60 Hz
- Three-phase
- - Maximum Voltage Rating: 690 V AC
- - Mounting: DIN Rail, Surface
- Vertical orientation
- - Dimensions (Overall): Width 2.13 in
- Height 4.18 in
- Depth 3.63 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Mechanical Durability: rated for a mechanical lifespan of up to 10 million cycles under specified conditions
- - Power Dissipation: based on typical operating conditions
- - Operating Temperature: -13 °F to 140 °F
- - Terminal Connection: Screw
- - Auxiliary Contacts Included: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.95
