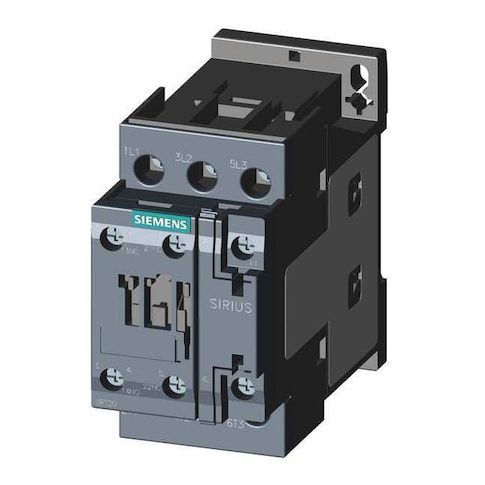

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20271AN20

• The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-phase contactor with a coil voltage of 208V AC. It's designed for vertical mounting and can be installed on either DIN Rail or Surface. The contactor has an auxiliary contact configuration of 1NO/1NC and includes two auxiliary contacts. With no enclosure, it carries an IP rating of IP20. This product belongs to the SIRIUS 3RT20 series and adheres to REACH Art 33 and WEEE (2012/19/EU) standards.

  Key features include:

• - Full load amps-inductive: 32 A
• full load amps-resistive: 50 A.
• - Horsepower ratings vary based on phase and voltage, ranging from 2 hp at single phase -120V AC up to 25 hp at three phase -600V AC.
• - Maximum operating temperature:140 Degrees F
• minimum operating temperature:-13 Degrees F.
• - Mechanical Operating Durability is tested up to ten million cycles.
• - Response time ranges between four to sixteen milliseconds for opening delay at AC, eight to forty milliseconds for closing delay at AC.
• - Watts loss is current dependent (2.3W) as well as current independent (10.5W).
• - Overall dimensions are depth:4.3 in, height:3.6 in, width:2.2 in with screw terminal connection type.
