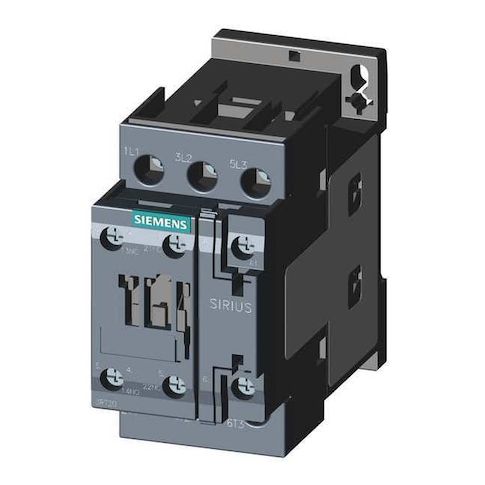

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20271AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in IEC-standard control panel applications. Its non-reversing action ensures consistent and predictable operation, while its three-pole design provides robust and secure switching. With a voltage range of 110-120V AC, this contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and power distribution networks. Its compact design and screw-terminal connections make it easy to install and integrate, while its high mechanical durability ensures long-term reliability and performance. Ideal for use in environments with an IP20 rating.
Top product features:
- Two auxiliary contacts are configured as 1NO/1NC for additional control and monitoring capabilities.
- The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch used to control power circuits.
- The unit includes three normally open main contacts for reliable and efficient power control.
Top product applications:
- Industrial Automation
- Control Panel Applications
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch used to control power circuits. It is rated for operation within the specified voltage range of 110–120 V AC and includes two auxiliary contacts configured as 1NO/1NC (2 total). This unit is part of the SIRIUS 3RT20 series (frame S0), with screw-terminal connections and designed for use in environments with an IP20 rating, suitable for IEC-standard control panel applications.
Key features
- - Coil Voltage: 110–120 V AC
- - Action: Non-Reversing
- - Phase: Three
- - Poles/Main Contacts: 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Electrical Connection: Screws
- - Series/Frame: SIRIUS 3RT20, Frame Size S0
- - Enclosure: Designed for use in IP20 environments
- suitable for IEC-standard control panel applications
- - Maximum Voltage: Rated for operation up to 690 V AC within specified conditions
- - Frequency: 50/60 Hz
- - Operating Temperature: -13°F to 140°F
- - Mechanical Durability: Approximately 10 million cycles under standard testing conditions
- - Overall Dimensions: Width 2.15 in
- Height 3.55 in
- Depth 4.20 in
- - Mounting: Mounting Style DIN Rail, Surface
- Mounting Position Vertical
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.95
