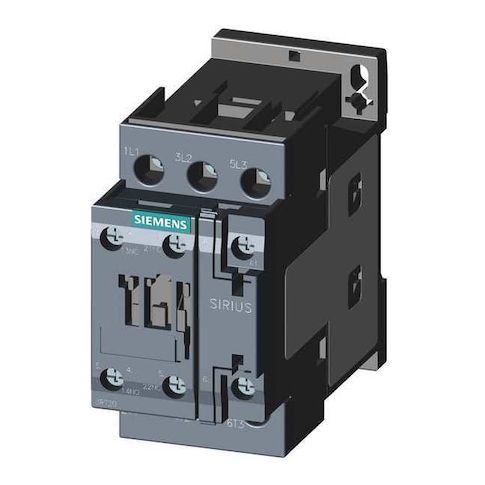

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20271AC20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in industrial applications. Its 3-pole, non-reversing design ensures safe and controlled operation, while the 24V AC coil and screw terminals provide easy installation and maintenance. With a mechanical durability of 10 million cycles and response times of 4-16ms for opening and 8-40ms for closing, this contactor is suitable for a wide range of applications, including motor control, lighting, and HVAC systems. Its compact dimensions and IP20 enclosure make it ideal for use in harsh environments, making it a valuable addition to any industrial control system.
Top product features:
- IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch with a 24 V AC coil.
- It includes two auxiliary contacts (1NO/1NC) and uses screw terminals.
- It has three normally open main contacts.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels
Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch with a 24 V AC coil. It includes two auxiliary contacts (1NO/1NC) and uses screw terminals. The device is part of the SIRIUS 3RT20 family, frame size S0, and is rated for switching power circuits within specified IEC standards.
- Coil voltage: 24 V AC
- - Action: Non-Reversing
- - Poles/Main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 2 total
- configuration 1NO/1NC
- auxiliary form 1NC/1NO
- - Frame/Series: SIRIUS 3RT20
- Frame Size S0
- - Mounting: DIN Rail, Surface
- - Enclosure/IP: IP20
- No Enclosure
- - Maximum voltage rating: 690 V AC
- - Frequency/Phase: 50/60 Hz
- Three phase
- - Mechanical durability: 10,000,000 cycles
- - Response time: Opening 4–16 ms
- Closing 8–40 ms
- - Dimensions: Depth 3.82 in
- Width 1.77 in
- Height 3.60 in
- - Terminals: Screw
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.50
- Package Height: 2.10
- Package Weight: 0.95
