IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20261BB443MA0
Free Shipping
In Stock

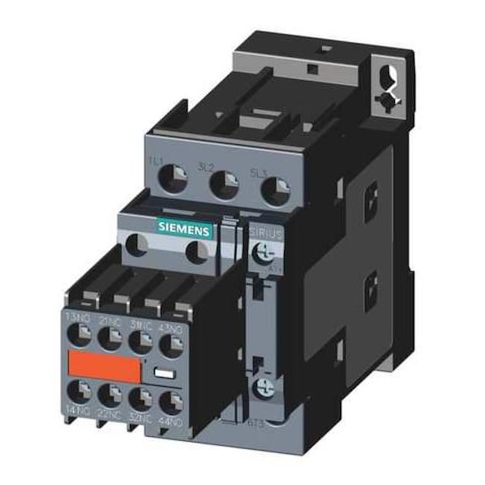

The Siemens IEC Magnetic Contactor is a reliable and efficient device for controlling electrical circuits in various applications. Suitable for mounting on DIN rails or surfaces, it features 2NO/2NC auxiliary contacts, screw terminals, and a permanent mounted auxiliary contact. This 3-pole, non-reversing device operates at 24V DC, meeting IEC standards for safety and performance. Ideal for use in industrial automation, robotics, and power distribution systems, the SIRIUS 3RT Safety Contactors series offers high durability and precision. With a compact design and easy installation, this magnetic contactor is perfect for applications requiring precise control and reliable operation in harsh environments.
Top product features:
- The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device.
- It features 2NO/2NC auxiliary contacts for a total of 4 auxiliary contacts.
- It has a screw terminal design for easy connection.
Top product applications:
- Machine Control Systems
- Industrial Automation
- Power Distribution Units
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil rated for operation within IEC standards. It features 2NO/2NC auxiliary contacts (for a total of 4 auxiliary contacts) and includes a permanent mounted auxiliary contact. The unit features screw terminals
- it does not include an embedded surge suppressor
- and it is suitable for mounting on DIN rails or surfaces in a vertical orientation (IP20). It belongs to the SIRIUS 3RT Safety Contactors series and meets the specifications for frame size S0 with frame code B.
- The device has an open enclosure rating of IP20.
- - Frame Size / Code: Meets the specifications for frame size S0 with frame code B.
- - Series: This product belongs to the SIRIUS 3RT Safety Contactors series.
- - Maximum Voltage: Rated for operation up to a maximum voltage of approximately 690 V AC under specified conditions.
- - Power Loss: Power consumption varies depending on operating conditions
- specific values are provided as technical specifications only.
- - Mechanical Durability: Mechanical durability is specified as part of the product's technical data but does not imply guaranteed performance over all use cases.
- - Dimensions: Height 6.26 in
- Width 2.13 in
- Depth 3.63 in
- - Operating Temperature Range: -13 °F to 140 °F
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.10
- Package Height: 6.20
- Package Weight: 1.45
