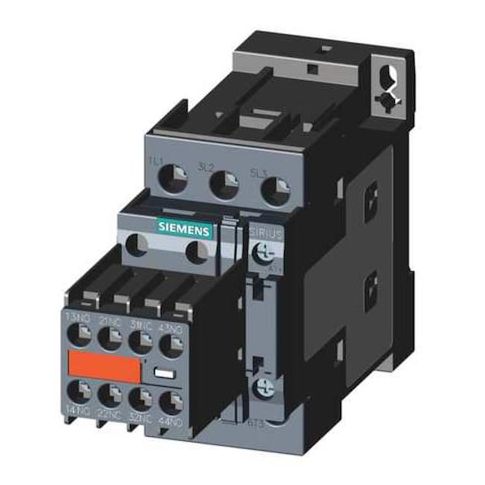

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AK643MA0

• The SIEMENS IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for operation within the specified voltage and current ranges. This 3-pole, non-reversing contactor uses a 110-120 V AC coil and includes four auxiliary contacts configured as 2NO/2NC, with screw terminals for wiring. It is part of the SIRIUS 3RT Safety Contactors family, in frame size S0, and compatible with DIN Rail or surface mounting as specified.

  - Action: Non-Reversing

• - Poles: 3
• - Coil Voltage: 110-120 V AC
• - Auxiliary Contacts: 4 (2NO/2NC)
• - Electrical Connection: Screws
• - Frame Size / Series: S0
• SIRIUS 3RT Safety Contactors
• - Mounting Style: DIN Rail, Surface
• - Mounting Position: Vertical
• - IP Rating: IP20
• - Maximum Voltage Rating: 690V AC
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 25 A, Resistive 40 A
• - Includes: Permanent Mounted Aux Contact
• - Dimensions (Depth/Height/Width): Depth 5.55 in, Height 3.6 in, Width 4.1 in
