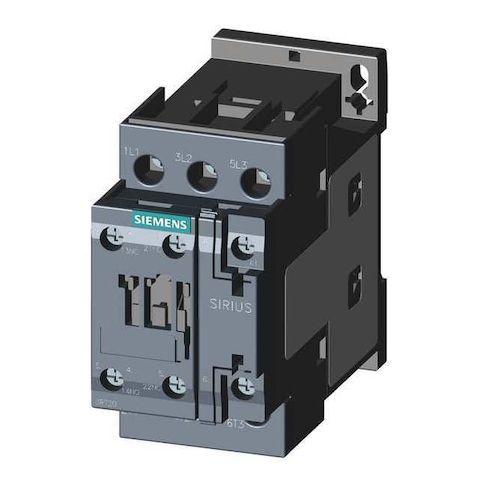

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AN20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Suitable for use in industrial and commercial settings, this three-pole device features two auxiliary contacts and three main contacts, providing flexibility and control over electrical loads. With a high power rating and fast response time, it can handle demanding applications such as motor control and power distribution. Its compact design and DIN rail mounting make it easy to integrate into existing systems. Ideal for use in manufacturing, oil and gas, and other industries requiring high-performance control solutions.
Top product features:
- Three-pole device compatible with IEC standards
- Includes two auxiliary contacts (one normally open, one normally closed) and three main contacts that are normally open
- Operates at 208 V AC with screw terminals for wiring connections
Top product applications:
- Motor Control for Pumps and Fans
- Use the Siemens IEC Magnetic Contactor in motor control applications for pumps and fans, where a non-reversing action is required.
- Power Distribution for Industrial Equipment
The Siemens IEC Magnetic Contactor is a three-pole device compatible with IEC standards. It includes two auxiliary contacts (one normally open, one normally closed) and three main contacts that are normally open. The coil operates at 208 V AC
- wiring connections are made via screw terminals. It is part of the SIRIUS 3RT20 series (frame S0). This product does not include an enclosure but has an IP20 ingress protection rating (not enclosed).
- Item: IEC Magnetic Contactor
- Series/Frame: SIRIUS 3RT20, Frame Size S0
- - Poles/Contacts: 3 poles
- 3 normally open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Auxiliary Contacts: 2 total
- Configuration 1NO/1NC
- - Coil Voltage: 208 V AC
- - Action: Non-Reversing
- Reversing: No
- - Electrical Connection: Screw terminals
- - Enclosure/IP: IP20 ingress protection rating (enclosure not included)
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 25 A
- Resistive 40 A
- - Full Load Currents: Inductive 25 A
- Resistive 40 A
- - HP @ Various Voltages (Single/Three Phase): 2 hp @ 120V
- 3 hp @ 230V
- 3 hp @ 240V
- 5 hp @ 208V (3-phase)
- 7.5 hp @ 240V (3-phase)
- 15 hp @ 480V (3-phase)
- 20 hp @ 575V (3-phase)
- 20 hp @ 600V (3-phase)
- - Dimensions: Width 2.15 in
- Height (overall) 3.55 in
- Depth (overall) 4.1 in
- Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- Mounting Hole Diameter: 0.19 in
- Hole Distances: Height 2.36 in
- Width 1.38 in
- - Standards/Compliance: REACH Art 33, WEEE
- - Response Time (AC/DC variations): AC closing 4–16 ms
- AC opening 4–16 ms
- DC opening 16–17 ms
- DC closing 50–170 ms
- - Includes Auxiliary Contacts: Yes
- - Other: Max. Operating Watts 11 kW (AC-3 at 400V), 23 kW (AC-1 at 400V)
- Mechanical Durability 10,000,000 cycles
- Operating Temp Range -13°F to 140°F
