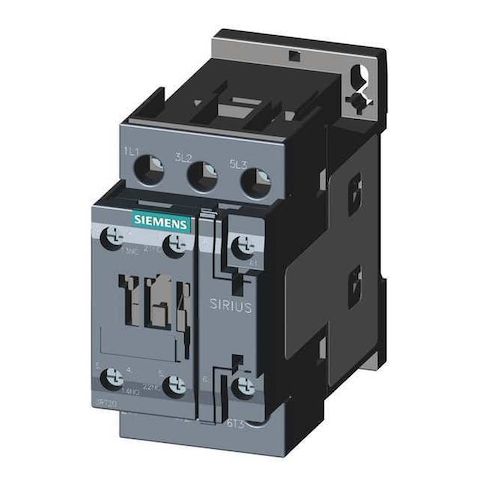

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications, including industrial control systems, motor control, and power distribution. With its 3-pole, non-reversing design and 110-120V AC coil, this contactor is suitable for use in a range of environments, from commercial to industrial settings. Its compact size and screw-terminal connections make it easy to install and integrate into existing systems. The contactor's high mechanical durability and long lifespan ensure reliable operation, making it an ideal choice for applications where uptime and efficiency are critical.
Top product features:
- IEC Magnetic Contactor is an electrically operated switching device rated for use within IEC standard specifications.
- It features an electromagnetic coil compatible with specified load types.
- It has a non-reversing action, meaning it can only switch the circuit in one direction.
Top product applications:
- Motor Control Circuits
- Automated Manufacturing Systems
- Power Distribution Panels
SIEMENS IEC Magnetic Contactor is an electrically operated switching device rated for use within IEC standard specifications. It features an electromagnetic coil compatible with specified load types. This non-reversing, 3-pole unit features a 110–120 V AC coil, 1NO/1NC auxiliary contacts, and screw-terminal connections. It conforms to the specifications of the SIRIUS 3RT20 series (frame size S0)
- suitable for mounting on DIN rails or surfaces as specified.
- Coil Voltage: 110–120 V AC
- - Action: Non-Reversing
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Terminal Connection: Screw
- - Enclosure / IP: rated for operation with no enclosure
- IP20 rating applicable under specified conditions.
- - Frame / Series: S0
- SIRIUS 3RT20
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
- - Maximum Voltage Rating: rated for operation up to 690 V AC within its specified parameters.
- - Frequency: 50/60 Hz
- - Maximum Operating Watts: rated for use within the stated wattage ranges under appropriate conditions.
- - Mechanical Durability: 10,000,000 cycles
- - Dimensions: Width 1.77 in
- Height 3.60 in
- Depth 3.82 in
- Overall Depth 4.15 in
- Overall Width 2.20 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.90
