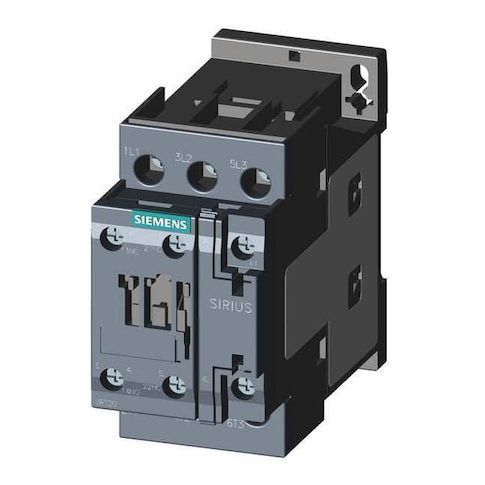

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AC20

• Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device activated by a 24 V AC coil. It uses an electromagnetic coil to open or close its main contacts and includes two auxiliary contacts (1NO/1NC). The unit is part of the SIRIUS 3RT20 family (frame S0) and features screw terminals with DIN Rail or surface mounting options, rated for operation within the specified frequency ranges and rated for operation up to 690V AC in accordance with specifications.

  Key features

• - Action: Non-Reversing
• - Poles / Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 2 total
• Configuration: 1NO/1NC
• - Coil voltage / Frequency: 24 V AC
• 50/60 Hz
• - Contactor style / Series / Frame: IEC
• Series SIRIUS 3RT20
• Frame Size S0
• - Electrical Connection: Screw terminals
• - Embedded Surge Suppressor: No
• - Enclosure / IP rating: IP20-rated enclosure (if applicable) or open type
• - Mounting: DIN Rail, Surface
• mounting hole diameter 0.19 in
• mounting hole distances (Height 2.36 in, Width 1.38 in)
• mounting position: Vertical
• mounting hole dimensions and position are provided without warranty of suitability for specific applications
• - Overall dimensions: Width 2.15 in
• Height 3.6 in
• Depth 4.15 in
• - Electrical ratings: electrical ratings are based on standard testing conditions and do not imply guaranteed performance under all circumstances
• - Horsepower (selected voltages/phases): horsepower ratings are provided based on typical test conditions and do not guarantee operational capacity at all loads or environments
• - Operating temperature range: -13 °F to 140 °F
• - Mechanical durability: 10,000,000 cycles
• - Standards: REACH Art 33, WEEE (2012/19/EU)
