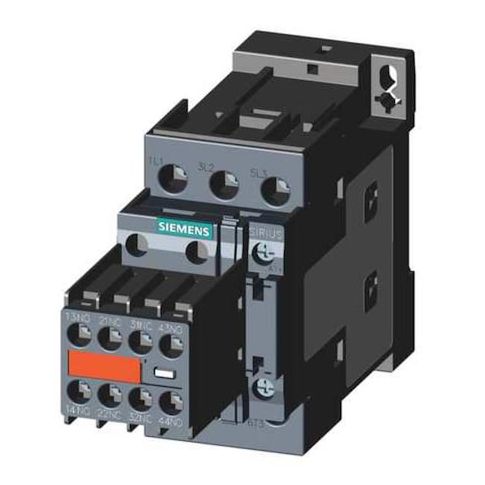

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AK643MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling motors and industrial loads in a variety of applications. Its 3-pole, non-reversing design makes it ideal for use in conveyor systems, pumps, and other equipment that requires consistent operation. With a voltage rating of 110-120V AC, this contactor is suitable for use in a range of settings, from small machines to large industrial processes. Its compact design and easy mounting capabilities make it a convenient choice for DIN Rail or surface mounting, ensuring a seamless integration into your existing systems.
Top product features:
- Non-Reversing Action
- 3-Pole Configuration
- 2NC/2NO Auxiliary Contact Configuration
Top product applications:
- Controlling motors in industrial settings
- Industrial load control
- Motor control in manufacturing processes
SIEMENS IEC Magnetic Contactor, 3-pole, non-reversing, coil voltage 110–120 V AC, is rated for operation within the specified voltage ranges and intended for controlling motors and industrial loads in accordance with applicable standards. It is designed for DIN Rail or surface mounting and is part of the SIRIUS 3RT Safety Contactors family (frame S0).
- Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Main contacts: 3
- - Auxiliary contacts: 4 total (2NO/2NC)
- - Auxiliary contact configuration: 2NO/2NC
- - Coil voltage: 110–120 V AC
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 690 V AC
- - IP rating: IP20
- - Mounting style/position: DIN Rail, Surface
- Vertical
- - Terminal connection: Screws
- - Full load current: Rated for use at specified current levels under normal operating conditions.
- - Horsepower ratings: designed to operate within the specified voltage and power ratings listed.
- - Dimensions: Height 5.87 in
- Width 2.13 in
- Depth 3.82 in (overall depth 3.63 in)
- - Mounting details: Mounting holes Ø0.19 in
- Hole spacing 2.36 in (height)
- 1.38 in (width)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 1.00
