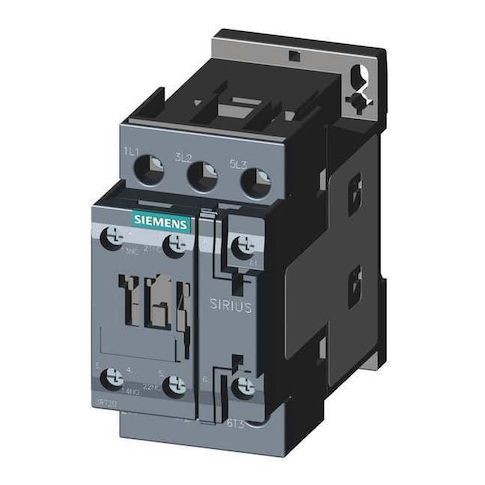

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AN20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in IEC-style control systems. Its 208V AC coil voltage and 3-pole, non-reversing operation make it ideal for applications such as motor control and power distribution. The device features 1NO/1NC auxiliary contacts and screw terminals for easy installation and connection. With a durable design and high mechanical durability of 10,000,000 cycles, this contactor is suitable for use in a variety of industries, including industrial automation, manufacturing, and power generation. Its compact design and IP20 rating ensure safe and reliable operation in a range of environments.
Top product features:
- Operates within IEC-style control system specifications
- Features 1NO/1NC auxiliary contacts for control and feedback
- Uses screw terminals for easy and secure connections
Top product applications:
- Industrial Control Systems
- Automotive Assembly Lines
- Power Generation and Distribution Facilities
The Siemens IEC Magnetic Contactor is a three‑pole, non‑reversing, coil‑operated switching device rated for operation within IEC‑style control system specifications. It uses 208 V AC coil voltage, features 1NO/1NC auxiliary contacts, and employs screw terminals. Compatible with DIN Rail or surface mounting
- IP20 rating, and belongs to the SIRIUS 3RT20 series with frame size S0.
- Coil Voltage: 208 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Action / Reversing: Non-Reversing
- - Auxiliary Contacts: 2 total (1NO/1NC)
- Form: 1NC/1NO
- - Series / Frame: SIRIUS 3RT20
- Frame Size: S0
- - Mounting / Terminals: DIN Rail, Surface
- Screw terminals
- - Enclosure / IP Rating: IP20
- - Maximum Voltage Rating: rated for use up to 690 V AC within specified conditions
- - Frequency / Phase: 50/60 Hz
- Three-phase
- - Mechanical Durability: 10,000,000 cycles
- - Operating Temperature: operates within the specified temperature range of -13 °F to 140 °F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.85
