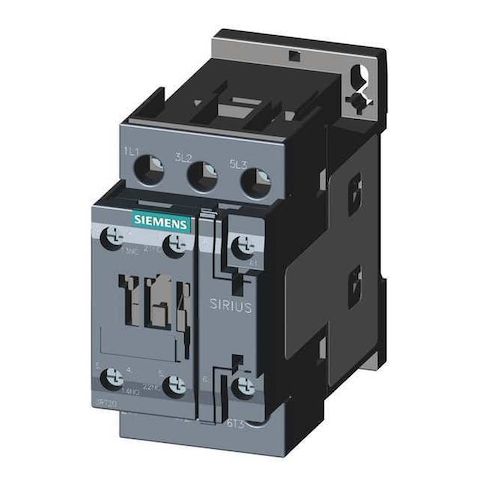

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AK60

• The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It is a 3-pole, non-reversing unit with a 110–120 V AC coil and screw terminals. Auxiliary contacts are specified as 1 NO / 1 NC according to product specifications. It uses frame code S0 within the IEC contactor family.

  Key features

• - Coil voltage: 110–120 V AC
• - Action: Non-Reversing
• - Poles and main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 2 total
• 1 NO / 1 NC according to product specifications
• - Contactor style/frame: IEC
• Frame Size: S0
• - Electrical connections: Screws
• - Enclosure rating: IP20 (if applicable) or specify no enclosure if accurate
• - Mounting: DIN Rail, Surface
• Mounting Position: Vertical
• - Overall dimensions: Dimensions provided are approximate and based on standard models
• - Maximum voltage rating: Rated for operation up to the specified maximum voltage of 690 V AC
• - Power ratings: Power ratings are based on standardized testing conditions and may vary with application
• - Full load amps: 16 A inductive
• 40 A resistive
• - Frequency: 50/60 Hz
• - Temperature range: -13 °F to 140 °F
• - Mechanical durability: 10,000,000 cycles
• - Number of auxiliary contacts: 2
