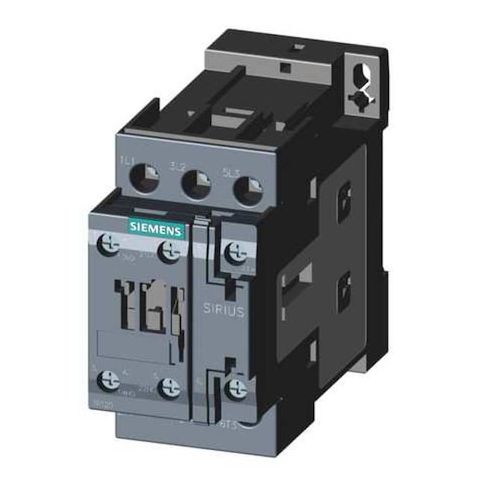

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20241BB40

• SIEMENS IEC Magnetic Contactor, 3-pole, non-reversing with a 24 V DC coil. It is rated for switching power circuits within specified parameters and is part of the SIRIUS 3RT20 series (Frame S0). Includes auxiliary contacts (1NO/1NC)

• configuration as a 3-pole controller with normally open main contacts.

  Key features

• - Poles: 3
• Main contacts: 3 normally open
• - Auxiliary contacts: 2 total (Auxiliary configuration: 1NO/1NC
• Auxiliary form: 1NC/1NO)
• - Coil: 24 V DC
• - Electrical connections: Screw terminals
• - Embedded surge suppressor: No
• - Enclosure: IP20-rated enclosure (if applicable)
• - Mounting: DIN Rail, Surface
• Mounting Position: Vertical
• - Frame/Series: S0
• Series: SIRIUS 3RT20
• - Voltage rating: Rated for operation at voltages up to 690 V AC within specified conditions
• - Full Load: Suitable for loads up to the specified current ratings under normal operating conditions
• - Horsepower (selected voltages/phases): Rated horsepower at various voltage and phase configurations according to specifications
• - Phase: Three
• - Reversing: No
• - Response time (AC): Typical response times based on testing under standard conditions
• - Mechanical durability: 10,000,000 cycles
• - Operating temperature: -13 °F to 140 °F
• - Maximum voltage: 690 V AC
• - Dimensions (approx.): Depth 4.2 in
• Height 4.1 in
• Width 2.2 in
• - Standards: REACH Art 33, WEEE (2012/19/EU)
