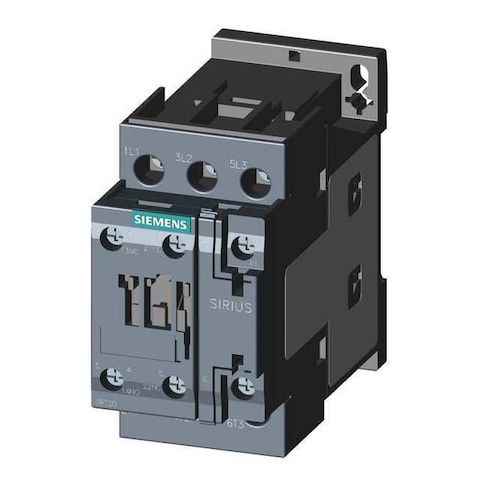

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20241AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of industrial applications. With a 220-240V AC coil and 3-pole configuration, it provides a non-reversing action and 2 auxiliary contacts for added functionality. The device is suitable for use in control circuits, motor control, and other applications where a high level of reliability and durability is required. Its compact design and open enclosure make it easy to install and maintain, while its IP20 rating provides protection against dust and water. Ideal for use in harsh industrial environments.
Top product features:
- It is a non-reversing device.
- It features 3 normally open main contacts.
- It has an open design with a maximum ingress protection rating of IP20.
Top product applications:
- Motor Control
- Power Distribution
- Machine Control
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a non-reversing, 3-pole device with a 220-240 V AC coil, featuring 1 normally open and 1 normally closed auxiliary contact. The unit uses screw terminals, has an open design with a maximum ingress protection rating of IP20, and supports mounting on DIN rail or a surface, within the SIRIUS 3RT20 family and frame size S0.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 220-240 V AC
- - Includes Auxiliary Contacts: Yes (2 total: 1 NO / 1 NC)
- - Auxiliary Contact Configuration: 1NO/1NC
- - Main Contacts: 3 normally open
- - Termination: Screw
- - Enclosure: has an open design with a maximum ingress protection rating of IP20
- - Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- - Frame / Series: S0
- SIRIUS 3RT20
- - Maximum Voltage Rating: 690V AC
- - Phase / Frequency: Three phase
- 50/60 Hz
- - Full Load Amps: Inductive 12 A
- Resistive 40 A
- - Mechanical Durability: 10,000,000 cycles
- - Overall Dimensions (HxWxD): 4.25 in x 3.45 in x 4.50 in
- - Embedded Surge Suppressor: No
- - Operating Temperature Range: rated for operation within the specified temperature range of -13°F to 140°F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 0.90
