IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20241AN20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications, including motor control, lighting, and HVAC systems. Its non-reversing action and 2 auxiliary contacts provide flexible control options, while its 3-pole design and 208V AC coil voltage ensure compatibility with a range of electrical systems. With a maximum operating wattage of 6 kW, this contactor is suitable for use in commercial and industrial settings, offering a durable and long-lasting solution for applications that require precise control and reliability. Its compact design also makes it ideal for DIN Rail or surface mounting.
Top product features:
- The product has a non-reversing action.
- It uses a screw terminal for electrical connection.
- It has 3 poles for main contacts.
Top product applications:
- Control of power circuits for motors
- Control of lighting loads
- Control of other power loads

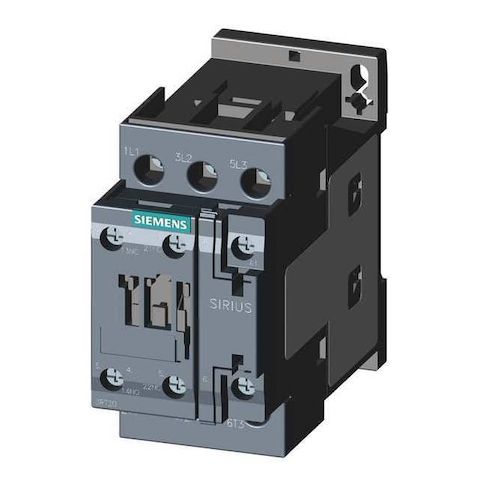

The SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing device with a 208 V AC coil and 2 auxiliary contacts (1 NO and 1 NC). As an IEC magnetic contactor, it is an electrically operated switching device that uses an electromagnetic coil to open or close contacts, enabling control of power circuits for motors, lighting, and other loads. It belongs to the SIRIUS 3RT20 series (frame S0) and supports DIN Rail or Surface mounting with screw terminals
- designed for use within its specified electrical ratings.
- Action: Non-Reversing
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Coil voltage: 208 V AC
- - Contactor style/frame: IEC
- Series: SIRIUS 3RT20
- Frame Size: S0
- - Phase/Frequency: Three, 50/60 Hz
- - Main contacts: 3 poles
- Auxiliary contacts: 2 (1NO/1NC)
- - Electrical connection: Screws
- - Enclosure: None
- IP Rating: IP20
- - Mounting: DIN Rail, Surface
- Mounting position: Vertical
- - Dimensions (overall): Depth 4.2 in
- Height 3.6 in
- Width 2.15 in
- - Maximum voltage rating: 690 V AC
- - Rated load currents are based on specific conditions as per product specifications.
- - Mechanical durability: 10,000,000 cycles
- - Max operating watts: 6 kW (at 400 V, AC-3)
- 23 kW (at 400 V, AC-1)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.80
- Package Height: 2.10
- Package Weight: 0.90
