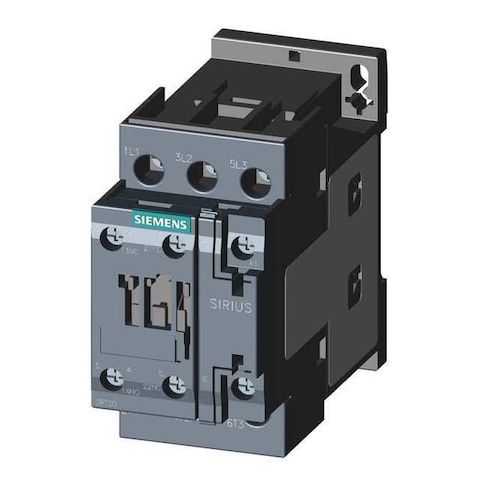

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20241AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for three-phase operation in various applications. Rated for 110-120V AC, it features a non-reversing action, 3 poles, and 2 auxiliary contacts with a 1NC/1NO configuration. Its compact design with screw terminals and IP20 rating makes it suitable for use in industrial settings, such as control panels, machines, and equipment. With a high mechanical durability of 10 million cycles and operating temperature range of -13°F to 140°F, this contactor is ideal for applications in harsh environments, including manufacturing, automation, and power distribution systems.
Top product features:
- The product has three normally open main contacts.
- It has two auxiliary contacts, one normally open and one normally closed.
- It is a non-reversing, coil-driven switching device.
Top product applications:
- General purpose control circuits in industrial applications
- Control circuits in HVAC systems
- Control circuits in power distribution systems
The SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switching device rated for operation within specified voltage ranges
- it belongs to the SIRIUS 3RT20 family with frame size S0, featuring screw terminals and two auxiliary contacts (1NO/1NC). The unit supports three-phase operation at frequencies of 50/60 Hz
- it has an IP20 rating without an enclosure.
Key features
- - Coil Voltage: 110–120 V AC
- - Action: Non-Reversing
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- Auxiliary contact form: 1NC/1NO
- - Electrical Connection: Screws
- - Frame Size / Series: S0
- SIRIUS 3RT20
- - Enclosure / IP Rating: No Enclosure
- IP20
- - Frequency / Phase: 50/60 Hz
- Three
- - Maximum Voltage Rating: 690V AC
- - Operating Watts: rated according to applicable standards for specific applications.
- - Mechanical Durability: 10,000,000 cycles
- - Operating Temperature: -13°F to 140°F
- - Mounting: DIN Rail, Surface
- Vertical
- - Overall Dimensions: approximately 4.1 inches deep
- approximately 2.15 inches high
- approximately 3.6 inches wide
- - Terminal Connection: Screw
- - Embedded Surge Suppressor: No
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 0.90
