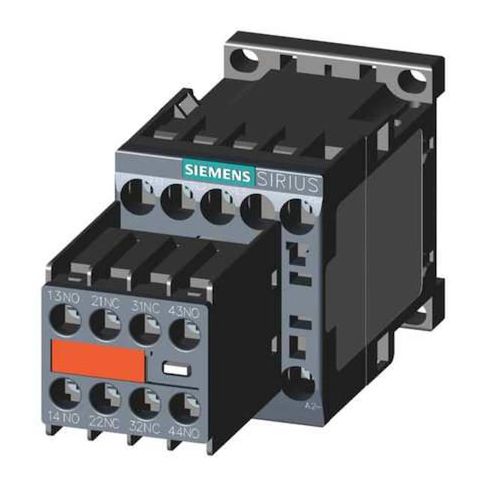

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AK643MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient device for controlling power circuits in various applications. Suitable for use in industrial settings, it provides a non-reversing action and is rated for operation within specified voltage ranges. With a coil rated for 110–120 V AC and 3 poles, it offers flexibility and convenience. The 2NO/2NC auxiliary contacts ensure safe and reliable operation, making it ideal for use in safety-critical applications. Its compact design and DIN Rail or surface mounting options make it easy to integrate into existing systems, providing a cost-effective solution for controlling power circuits.
Top product features:
- The Siemens IEC Magnetic Contactor has 2NC/2NO auxiliary contacts.
- It is rated for operation within specified voltage ranges of 110-120 V AC.
- It has a non-reversing action.
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
The Siemens IEC Magnetic Contactor is a 3-pole device rated for operation within specified voltage ranges used to control power circuits.
It has a coil rated for 110–120 V AC and provides auxiliary contacts configured as 2NO/2NC (2NC/2NO form).
- Action: Non-Reversing
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 4 total (2NO/2NC)
- - Auxiliary contact configuration: 2NO/2NC
- - Coil voltage: 110–120 V AC within specified limits
- - Electrical connection: Connection method: Screw terminals compatible with standard wiring practices
- - Mounting: Mounting options include DIN Rail or surface mounting according to installation requirements
- - Frame/Series: S00
- Series SIRIUS 3RT Safety Contactors
- - Enclosure/IP: Enclosure rating indicates protection level of IP20 per applicable standards
- no enclosure provided by the device itself.
- - Maximum voltage: Rated for operation at voltages up to 690 V AC in accordance with specifications.
- - Frequency: Designed for use within frequency ranges of approximately 50 Hz and 60 Hz.
- - Ratings: Ratings are based on standardized testing conditions
- actual performance may vary depending on application conditions.
- - Mechanical durability: 30,000,000 cycles
- - Operating temperature: -13°F to 140°F
- - Dimensions: Width 1.77 in
- Depth 2.45 in
- Height 4.73 in
- - Mounting hole: diameter 0.2 in
- height spacing 1.97 in
- width spacing 1.38 in
- - Includes: Permanent mounted auxiliary contact
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Weight or other not provided attributes are not listed here.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 2.50
- Package Height: 1.90
- Package Weight: 0.65
