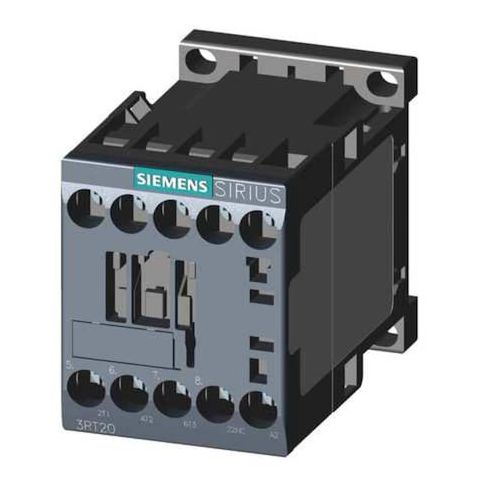

IEC Magnetic Contactor, 1NC, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AP62

• The SIEMENS IEC Magnetic Contactor is an electrically operated switching device designed to switch electrical loads within specified ratings. It is a 3-pole, non-reversing contactor with a coil voltage of 220–240 V AC and a 1NC auxiliary contact, part of the SIRIUS 3RT20 series. It uses screw terminals for connections and can be mounted on a DIN rail or a surface in a vertical orientation.

  - Action: Non-Reversing

• - Phase: Three
• Number of Poles: 3
• - Coil Voltage: 220–240 V AC
• - Auxiliary Contacts: 1 (1NC)
• - Main Contacts: 3 normally open
• - Contactor Series / Frame: SIRIUS 3RT20
• Frame Size: S00
• - Electrical Connection: Screws
• - Maximum Voltage Rating: 690 V AC
• - IP Rating / Enclosure: IP20
• No Enclosure
• - Mounting: DIN Rail, Surface
• Mounting Position: Vertical
• - Dimensions (W x H x D): 1.77 in × 3.08 in × 2.87 in
• - Full Load Amps: Inductive 16 A
• Resistive 22 A
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Mechanical Durability: 30,000,000 cycles
• - Temperature Range: -13°F to 140°F
• - HP Ratings (examples): 1-Phase 120V = 1 hp
• 1-Phase 240V = 2 hp
• 3-Phase 240V = 5 hp
• 3-Phase 480V = 10 hp
• 3-Phase 575V = 10 hp
