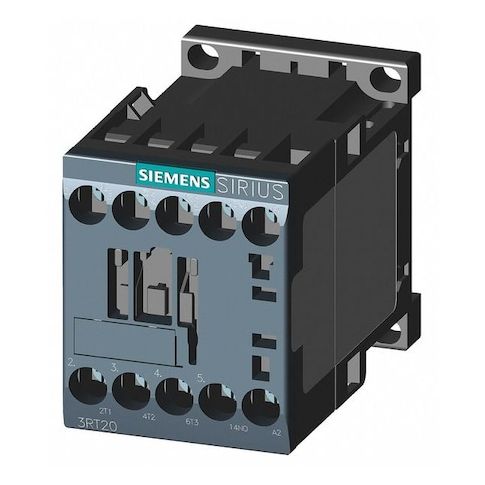

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AP61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching solution for a wide range of applications. Suitable for use in environments with 220-240V AC, this three-pole, non-reversing contactor features one normally open auxiliary contact and is part of the SIRIUS 3RT20 series. Ideal for industrial control and automation systems, it provides a robust and durable solution for high-cycle applications. Its compact design and screw terminal connections make it easy to integrate into existing systems, while its IP20 rating ensures reliable operation in harsh environments. Perfect for use in manufacturing, process control, and power distribution systems.
Top product features:
- The Siemens IEC Magnetic Contactor has three poles for controlling multiple circuits.
- It includes one normally open auxiliary contact for additional control or monitoring functionality.
- It is rated for operation up to 690 V AC and has a maximum operating temperature of 140 Degrees F.
Top product applications:
- Industrial Automation Control Systems
- Motor Control Circuits
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, coil-controlled switch rated for switching applications within specified parameters. It energizes with a 220–240 V AC coil and includes one normally open auxiliary contact (1NO). This unit is part of the SIRIUS 3RT20 series (Frame Size S00) and uses screw terminals for wiring.
- Coil voltage: 220–240 V AC
- - Action: Non-Reversing
- - Poles: 3
- - Auxiliary contacts: 1NO
- - Main contacts: 3 NO
- - Connection type: Screw
- - Mounting: DIN Rail, Surface
- - Enclosure: intended for use in environments consistent with IP20 ratings
- - Series/Frame: SIRIUS 3RT20, Frame Size S00
- - Max voltage rating: rated for operation up to 690 V AC under specified conditions
- - Phase: Three
- - Frequency: 50/60 Hz
- - Full load amps: 16 A (inductive)
- 22 A (resistive)
- - Max operating temperature: 140 Degrees F
- - Min operating temperature: -13 Degrees F
- - Mechanical durability: tested for mechanical durability over specified cycle counts
- - Embedded surge suppressor: No
- - Mounting position: Vertical
- - Overall dimensions: 3.2 in depth x 2.4 in height x 1.95 in width
- - Includes auxiliary contacts: Yes
- - Reversing: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.50
- Package Height: 1.80
- Package Weight: 0.55
