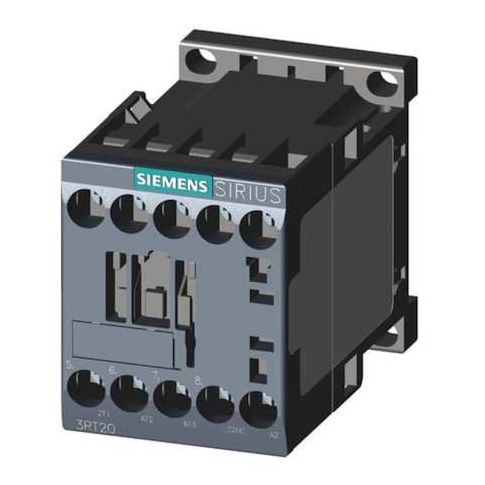

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AN62

• The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-phase contactor with a coil voltage of 208V AC. It features an auxiliary contact configuration of 1NC and is designed to connect electrically via screws. This product belongs to the SIRIUS 3RT20 series and has a frame size of S00. The device operates at frequencies of either 50 or 60 Hz and is rated for handling full load currents up to 16 A for inductive loads and up to 22 A for resistive loads.

  Key Features:

• - Non-Reversing action: This means that the contactor does not have the ability to reverse its direction.
• - Auxiliary Contact Form: The form is designated as "1NC" which stands for one normally closed circuit.
• - Coil Voltage: Rated for operation at a coil voltage of 208V AC.
• - Electrical Connection: Designed to connect electrically via screws.
• - Full Load Amps: Rated for handling full load currents up to 16A (inductive) and up to 22A (resistive).
• - Horsepower Ratings: Dependent on the type of operation. For single-phase operations, it's rated as follows: 1 hp at120V AC
• 2 hp at240V AC. For three-phase operations, it's rated as follows:3hp at208V AC
• 5hp at240VAC
• 10hpat480and600 VAC.
• - Mounting Style Options: Compatible with both DIN Rail or Surface mounting options.
• - Operating Temperature Range: Rated for operation within temperature ranges from -13 degrees F (-25°C) up to140 degrees F(60°C).
