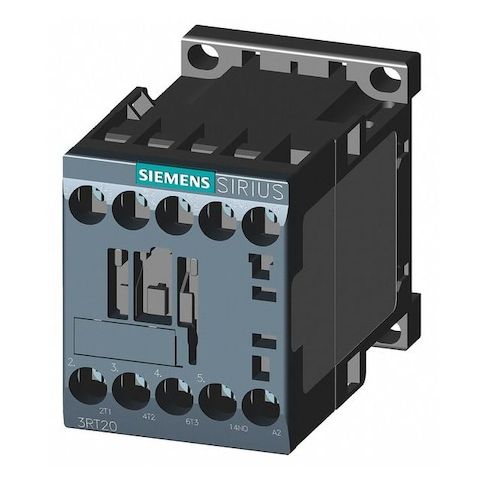

IEC Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AN61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications. Suitable for operation in electrical systems with voltage ranges up to 690V AC and frequency of 50/60 Hz, this contactor is ideal for use in industrial control panels, motor starters, and other applications where a non-reversing switching device is required. Its compact design and screw terminal connections make it easy to install and integrate into existing systems, while its high mechanical durability and long lifespan ensure reliable performance and minimal downtime.
Top product features:
- The Siemens IEC Magnetic Contactor has 3 normally open main contacts.
- It features screw terminals for connection.
- It has a non-reversing action, allowing for one-way switching.
Top product applications:
- Motor Control
- Automation Systems
- Industrial Power Distribution
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing switching device (Frame S00, Series SIRIUS 3RT20). It has a coil rated for operation at approximately 208V AC. It features screw terminals, vertical mounting options, and supports DIN Rail or Surface mounting. The enclosure has an IP20 rating
- the device is rated for use within specified voltage ranges up to 690V AC and frequency range of 50/60 Hz.
- Coil voltage: Rated for operation within specified voltage ranges
- - Action: Designed as a non-reversing switching device
- - Reversing: No
- - Poles: 3
- - Main contacts: 3 normally open
- - Auxiliary contacts: 1 NO (Includes auxiliary contacts)
- - Frame/Series: S00, SIRIUS 3RT20
- - Terminal connection: Screw
- - Mounting style: DIN Rail, Surface
- - Mounting position: Vertical
- - Enclosure: The product does not include an enclosure component
- - IP rating: The product has an IP20 ingress protection rating under standard testing conditions
- - Maximum voltage: Rated for operation within specified voltage limits up to approximately 690V AC
- - Frequency: Designed to operate within standard frequency ranges of electrical systems
- - Full load amps: Inductive 16 A
- Resistive 22 A
- - HP @ 3 Phase: 208V = 3 hp
- 240V = 5 hp
- 480V = 10 hp
- 575V = 10 hp
- - Watts loss: 1W (current dependent)
- 6.5W (current independent)
- - Mechanical durability: 30,000,000 cycles
- - Operating temperature: -13°F to 140°F
- - Dimensions (W x H x D): 1.97 in x 3.08 in x 2.45 in
- - Mounting hole: Diameter 0.2 in
- Distance (Height) 1.97 in
- Distance (Width) 1.38 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.52
