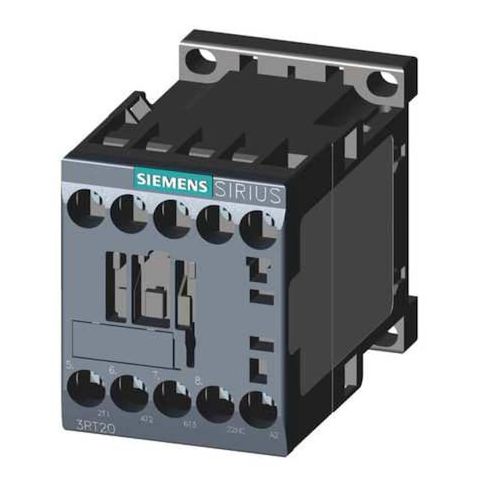

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AK62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient control device designed for a wide range of applications, including industrial automation, HVAC, and renewable energy systems. With its 3-pole, non-reversing design and 110-120V AC coil, it provides precise control over power circuits, ensuring safe and reliable operation. The contactor's 1NC auxiliary contact and screw terminals offer easy wiring and maintenance, while its mechanical durability rating of 30 million cycles ensures long-term performance. Suitable for use in various industries, this contactor is ideal for applications where precise control and reliability are critical, such as in manufacturing, oil and gas, and water treatment plants.
Top product features:
- The product has a 1NC auxiliary contact that provides an additional switching point for control circuits.
- The unit is non-reversing, meaning it will only switch power in one direction and prevent accidental reversals.
- The contactor employs screw terminals for wiring, allowing for secure and easy connections.
Top product applications:
- Automotive Applications
- Industrial Automation and Control Systems
- Power Generation and Distribution Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing control device from the SIRIUS 3RT20 series (frame S00) that uses a 110–120 V AC coil to switch power circuits. It includes 1NC auxiliary contact and employs screw terminals for wiring. The unit has no embedded surge suppressor and no enclosure (IP20)
- mounting options include DIN Rail or Surface. It is rated for operation within the specified voltage ranges and designed to handle the indicated current loads under normal operating conditions. The contactor has a mechanical durability rating based on standard testing procedures.
Key features
- - Coil Voltage: 110–120 V AC
- - Poles / Main Contacts: 3 poles
- 3 main contacts
- - Auxiliary Contacts: 1NC (includes auxiliary contacts)
- - Action / Reversing: Non-Reversing
- Reversing: No
- - Connection: Screws
- - Frame / Series: S00, SIRIUS 3RT20
- - Frequency: 50/60 Hz
- - Maximum Voltage: 690 V AC
- - IP / Enclosure: IP20
- No Enclosure
- - Mounting: DIN Rail, Surface
- - Overall dimensions: Width 1.97 in, Height 3.08 in, Depth 2.45 in
- - Full Load Amps: Inductive 16 A, Resistive 22 A
- - HP ratings (selected): 1 hp @ 120 V, 2 hp @ 230/240 V, 3–5–10 hp at higher voltages
- - Mechanical Durability: 30,000,000 cycles
- - Terminal type: Screws
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
