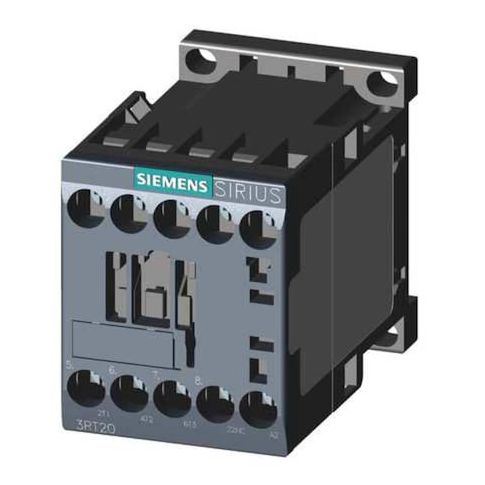

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AB02
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and versatile solution for controlling electrical circuits in a variety of applications. With a compact design and easy mounting options, this three-pole contactor is ideal for use in industrial automation, HVAC systems, and commercial equipment installations. Its ability to handle high horsepower ratings and operate in a range of temperatures makes it a valuable asset for applications requiring efficient and reliable control. By installing the Siemens IEC Magnetic Contactor, users can improve system performance, reduce energy consumption, and increase overall productivity.
Top product features:
- Operates at a frequency of 50/60 Hz.
- Has full load amps for both Inductive (16 A) and Resistive (22 A) loads.
- Capable to handle horsepower ranging from single phase (120V AC: 1 hp) to three-phase applications (208V AC:3 hp, 240V AC:5hp, 480vAC &600vAC :10hp).
Top product applications:
- Automatic Lighting Control Systems
- Motor Control Circuits
- High-Volume Production Lines
The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-pole device with a coil voltage of 24V AC. It features an auxiliary contact configuration of 1NC and has no embedded surge suppressor. The contactor can be mounted vertically on either DIN Rail or Surface and does not come with an enclosure. Its frame size is S00, making it compact in design with dimensions of 2.87 inches in depth, 1.77 inches in height, and width also measuring at 1.77 inches.
Key Features:
- - Operates at a frequency of 50/60 Hz.
- - Has full load amps for both Inductive (16 A) and Resistive (22 A) loads.
- - Capable to handle horsepower ranging from single phase (120V AC: 1 hp
- 240V AC: 2 hp) to three-phase applications (208V AC:3 hp
- 240V AC:5hp
- 480vAC &600vAC :10hp).
- - Maximum operating temperature is up to140 Degrees F while the minimum can go down to -13 Degrees F.
- - Comes equipped with one auxiliary contact.
- - Has IP20 rating indicating protection against solid objects up to12mm but no protection against water ingress.
- - Is rated for operation up to a maximum voltage of 690 VAC
- -Mechanical operating durability is rated for up to 30,000,000 operations
- -The response time varies between4 msec and170 msec depending on the operation conditions
- -Conforms to REACH Art33and WEEE(2012/19/EU) standards
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 43 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
