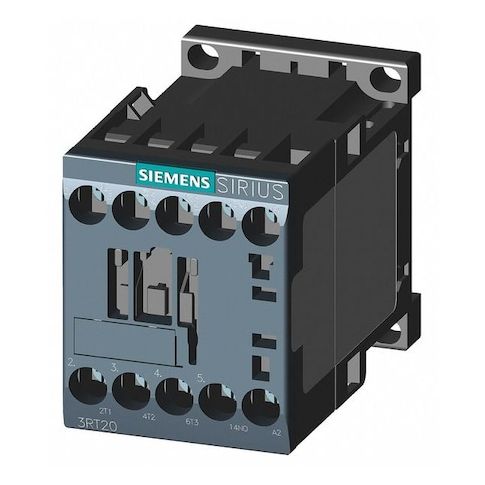

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AB01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Rated for non-reversing operation, this 3-pole device is suitable for use in industrial control systems, manufacturing, and commercial settings. Its 24V AC coil and screw terminals provide easy installation and connection. The contactor features a normally open auxiliary contact and is designed for use in environments with temperatures ranging from -13°F to 140°F. Its compact size and DIN Rail or surface mount options make it ideal for use in space-constrained areas, such as control panels and machinery.
Top product features:
- The Siemens IEC Magnetic Contactor is rated for non-reversing operation.
- It includes 1 normally open auxiliary contact.
- It is designed for use with a 24 V AC coil.
Top product applications:
- Motor Control
- Power Distribution
- Automation Systems
The Siemens IEC Magnetic Contactor is rated for non-reversing operation. It is a 3-pole device with a 24 V AC coil and screw terminals. It includes 1 normally open auxiliary contact and belongs to the SIRIUS 3RT20 series (frame size S00).
- Action: The contactor is rated for non-reversing operation.
- - Auxiliary contacts: 1 NO (1 auxiliary contact)
- - Coil voltage: 24 V AC
- - Contactor style: IEC
- - Frame size / Series: S00
- SIRIUS 3RT20
- - Electrical connection: Screws
- - Enclosure/IP rating: Not enclosed
- IP20
- - Rated for operation up to 690 V AC within specified conditions.
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 16 A
- Resistive 22 A
- - HP ratings (select voltages/phases): 1 hp @ 120V
- 2 hp @ 230/240V (single-phase)
- 3 hp @ 208V
- 5 hp @ 240V (3-phase)
- 10 hp @ 480V
- 10 hp @ 575V
- - Mechanical durability: Mechanical endurance tested to approximately 30 million cycles under specified testing conditions.
- - Operating temperature: Operational temperature range: -13°F to 140°F as per manufacturer specifications.
- - Dimensions: Width 1.77 in
- Height 2.40 in
- Depth 3.20 in
- - Mounting: DIN Rail, Surface
- - Watts loss: 1W (current dependent)
- 5.7W (current independent)
- - Standards: REACH Art 33, WEEE
- - Reversing: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.55
