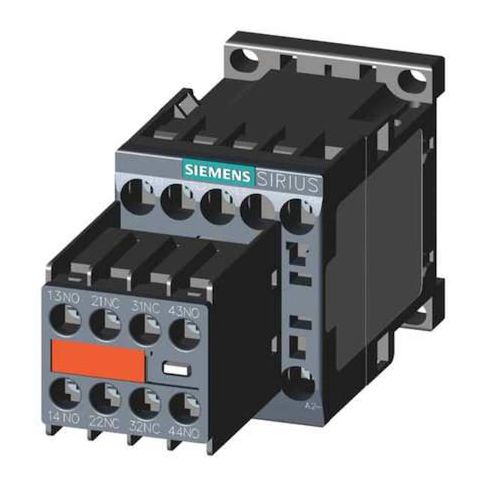

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AK643MA0

• The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a 3-pole, non-reversing contactor in the SIRIUS 3RT Safety Contactors series, with a 110–120 V AC coil and 2NO/2NC auxiliary contacts. The device is suitable for use in control panel applications conforming to industry standards and uses screw terminals for connections. Designed for DIN Rail or surface mounting

• rated for voltages up to 690 V AC
• IP20 protection rating.

  - Coil voltage: 110–120 V AC

• - Action: Non-Reversing
• - Poles: 3
• - Phase: Three
• - Frequency: 50/60 Hz
• - Main contacts: 3 NO
• - Auxiliary contacts: 4 total (2NO/2NC)
• includes permanent mounted aux contact
• - Reversing: No
• - Frame/Series: Frame Size S00
• Series SIRIUS 3RT Safety Contactors
• - Enclosure/IP: No Enclosure
• IP20
• - Mounting: DIN Rail, Surface
• Terminal connection: Screw
• - Maximum voltage rating: 690 V AC
• - Full Load Amps: Inductive 12 A
• Resistive 22 A
• - Power: 6 kW (AC-3) at 400 V
• 13 kW (AC-1) at 400 V
• - Mechanical durability: 30,000,000 cycles
• - Operating temperature: -13°F to 140°F
• - Dimensions (approx.): 2.4 in W × 1.95 in H × 5.0 in D
• - Standards: REACH Art 33, WEEE (2012/19/EU)
